#525-20 cin-milacron "high-power" vertical mill #25528

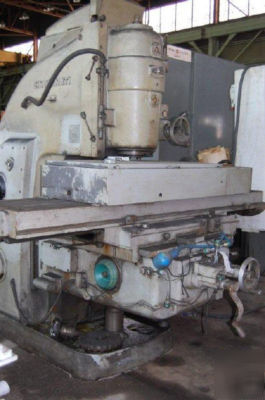

#525-20 CINCINNATI-MILACRON "HIGH-POWER" VERTICAL MILL
New 1966, Serial No 4J5V5S-2, Model 525-20, "LA"
Table Dimensions (Overall), W x L...... 20" x 94.5"
Table Working Surface, W x L........... 20" x 94.5"
Table Longitudinal Travel (X-Axis)..... 50"
Saddle Cross Travel (Y-Axis)........... 18"
Knee Vertical Travel (Z-Axis).......... 16"
Spindle-Head Vertical Travel (W-Axis).. 8"
Spindle-Nose to Table, Minimum......... 0"
Spindle-Nose to Table, Maximum......... 22"
Spindle Taper.......................... #50 NSTD
(24) Spindle Speeds, Range............. 14 to 1400 RPM
(32) Longitudinal and Cross Feeds...... 3/8 to 90 IPM
(32) Vertical Feeds, Range............. 3/32 to 22.5 IPM
Power Rapid Traverse, Long & Cross..... 150 IPM
Power Rapid Traverse, Vertical......... 37.5 IPM
Spindle Motor, Horsepower.............. 20 HP
Weight, Approximately.................. 17750 LBS
CONDITION: Appears to be in Very Good Condition
PRICE: F.O.B. OUR WAREHOUSE........... $9,950.00
