52" w finish pro fp-5285 belt grinder, metal sander/deb
52" W Finish Pro FP-5285 BELT GRINDER, METAL SANDER/DEB

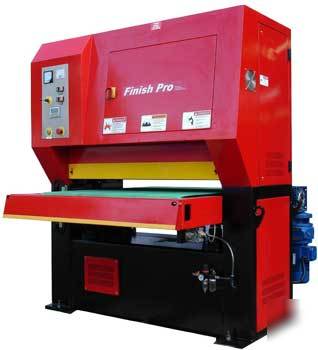

52" Width Finish Pro FP-5285 BELT GRINDER, METAL SANDER/DEBURRING/FINISHING MACHINE
NEW "Finish Pro" 52 x 85" Metal Sander/Deburring/Finishing Machine
Variable Speed Conveyor with inverter drive
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer )
to Re-adjust the tracking system when running extremely out of parallel belts
Safety System with Disc Brake. Air operated disc brakes to stop sanding head
in 3-5 seconds in the even of loss of air pressure or activation of any
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Dust collection hood with 6 outlet is located adjacent to abrasive head in
Operation manual, control tags, danger signs, and warning labels in English
Max. Thickness Capacity 3-1/8
Conveyor Drive Speeds 8-40 FPM
Dust Collector Capacity 2,800 CFM
Main Motor 30 HP, 230V / 460V, 3-Ph
Conveyor Motor 3 HP, 230V / 460V,3-Ph
Table Lifting Motor 3 HP, 230V / 460V, 3-Ph
Machine Dimensions, LxWxH 89 x 98 x 93
CAUTION: If fire hazardous materials, such as
aluminum, titanium, magnesium, etc., are to be
processed, a dust collection system that conforms
to National Fire Protection Association (NFPA)
Compressed Air Required: 2 CFM @ 90 PSI
Heavy Duty Ducting Package # HDDP-5285
