Usb pos cash drawer w/brackets usb read barcode scanner

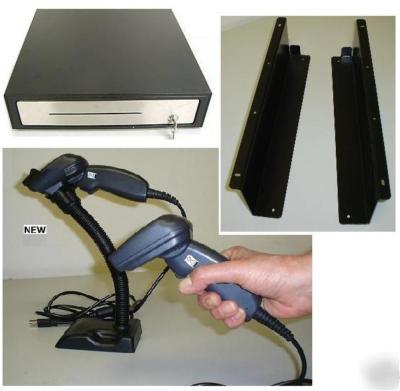

USB POS Cash Drawer- connection to The PC, With Under Counter Mounting Brackets (mounting underneath a counter top)
With USB Readable Barcode Scanner w/Stand
INCLUDED:- Pre wired:- with USB cable and plug for connection to PC,
With Under Counter Mounting Brackets and Port software CD,
With USB Readable Barcode Scanner w/Stand.
Removable Tray, two-piece money tray insert (5 bill insert, Removable 5 coin insert)
2 Keys - Lock :- 3v Position key lock (Locked, Open & Manual).
24V standard solenoid activated drawer.
*Cash Drawer*Size: 16.4"W x 16.4"D x 4.5"H
*Brackets fits HPC Cash Drawer
*package :- 20"X20"X8" ( Cash Drawer And Brackets) (ccd separate Pkg.)
The USB Trigger uses a Virtual Serial Port Driver, making it appear to have the software
like a standard RS232 Serial Port.
This way the existing POS software can communicate with the USB Cash Drawer Trigger
as if it were connected to a Serial Port.
A. unique serial number is assigned to each USB Trigger Module and the
Driver Software will assign the next available Serial Port to each device it recognize (multiple Triggers can be used on one PC).
Don't hesitate to contact me if any Q appears!
Come :- with virtual Com. Port Software.
USB Barcode Scanner POS CCD Bar Code Reader With /Stand - New
***Fast and accurate scanning performance
* Output Interface Support :- AT/KB, PS2/KB, RS-232, HID USB, USB COM
EAN-8, EAN-13, UPC-A, UPC-E, EAN/UPC Add-on, Code-39, Code-32,
UCC/EAN/Code-128, Industrial-25, Interleaved-25,
Martix-25,China Post25, Codabar/Nw7,
*Resolution:- Min. 0.127 mm (5mil)
*Front Focus:- 75mm (5mil), 140mm(5mil)
** Depth of Field - 40-140mm(16mil) - 50-400mm(16mil)
** Light Source - 630nm Red LED LAMP
** Read Sensor - Linear CCD Image Sensor 2048 pixel
** Scanning Rate - 250scans/sec x 2 cycles
** Decoding Rate - Real-Time 500 scans/sec
** Scanning Performance - 500 scans/sec
** Reading Indicator - Red LED and Adjustable Volume Buzzer
** Programming Configuration - Programming Manual or Download via RS-232C I/F
** Working Temperature - 0 C - 45 C
** Environment Humidity - 10% 90% RH
** Drop Durability - 1m Drop onto Concrete Surface
** Net Weight - 125g (no cable)
** Power Consumption - 75-80mA - 90-95mA
