New - wagner gdk 30 gram dial 30 x 1 g

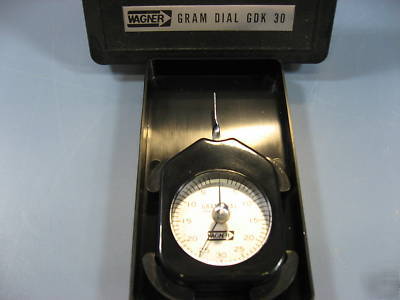

NEW - Wagner GDK 30 Gram Dial 30 x 1 g
Capacity/Graduation: 2 gf - 30 gf x 1 gf
The Wagner Gram Dial GDK Series is an economical cantilever arm force gauge for testing tension and compression at right angles to the force. The compact size and cantilever arm configuration facilitate force measuring in limited access areas or small openings. The flat tip design offers line contact with the test object and incorporates a small hole for hanging calibration weights or for attaching other test objects to the gauge.
Reads both clockwise and counterclockwise.
Holds maximum force reading - avialable with most models.
Small hole in flat tip permits accuracy checks with test weights.

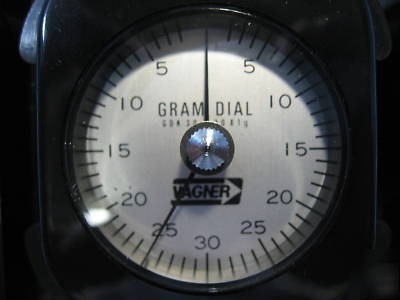

Large 1 1/2'' dial with easy-to-read graduations.
Accurate to within one graduation.
