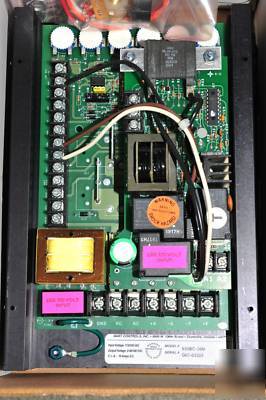

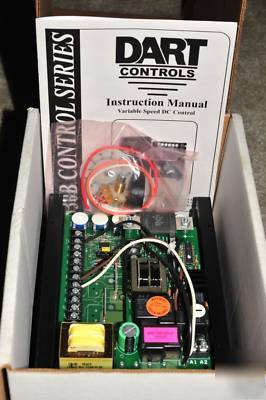

Variable speed dc control 0-90VDC, 530BC-36M fw-reverse
530BC-36M - Dart Controls, Inc. Motor Drive Controls
1/8 thru 2.0 HP Dual voltage control with forward-reverse with dynamic brake and zero speed detect. -36M Option is 120 Volt
For more details use this factory catalog link:
http:// /catalogs/530BSeries.pdf
Dual 120/240 VAC, 50/60Hz via slide selector switch Adjustable horsepower settings Barrier terminal strip
115 VAC Single Phase Input, 0-90 VDC Output MAX. AC H.P. AMPS KVA
Packaged bridge supply (fullwave)
1/6 2.6 0.31 1/4 3.5 0.42 1/3 4.4 0.53 1/2 6.5 0.78 3/4 9.3 1.12
Adjustable Linear Deceleration (0.6 12 sec.)
Line voltage compensation 5K ohm speed potentiometer with 8" leads, dial and knob included Power on/off switch and indicator lamp (RE version) Power interrupt relays (RC and RE versions). Permits local and/or remote switching of AC power with low current momentary contacts. Prevents automatic restart after interruption of AC power. 50:1 speed range Overload capacity: 200% for one minute Transient voltage protection
230 VAC Single Phase Input, 0-180 VDC Output MAX. AC H.P. AMPS KVA1/4 1.8 0.42 1/3 2.2 0.53 1/2 3.3 0.78 3/4 4.8 1.15 1.0 6.5 1.56 1.5 9.7 2.33
MAX. ARM* AMPS DC 1.4 1.7 2.5 3.7 5.07.5
Voltage following mode or DC tachometer follower by supplying ungrounded analog input signal (0-12 VDC)
* Minimum Armature Amps: 150mA D.C.
Inhibit circuit - permits start and stop without breaking AC lines
Shunt field supply provided (1 Amp max; 100V for 120 VAC; 200V for 240 VAC input)
2 AC line fuses +12 VDC, 12mA power supply, user accessible
Enclosed models rated NEMA 4/12
H.P. CHASSIS ENCLOSED CHASSIS WITH
115 VAC Single Phase Input, 0-90 VDC Output 1
1.5 533BC Available in chassis only, limited options available.
230 VAC Single Phase Input, 0-180 VDC Output 1/4 - 2.0 530BC 530BRE 530BRC
3.0 533BC Available in chassis only, limited options available.
Horsepower settings are adjustable, see installation manual. Control is tested and calibrated for maximum horsepower in its category. 1 - Regulated output voltage adjustable to 130 VDC, dependent upon motor horsepower rating.
Jog (enclosed only)...................................................................-4 4-20mA isolated signal follower (chassis only) ................. -5* -5 option with Auto/Manual function ............................... -7* Ten turn speed pot and dial plate (chassis only) ............ -11*
DIMENSIONAL SPECIFICATIONS MODEL WIDTH LENGTH DEPTH WEIGHT English (inches) Chassis 6.70 9.00 2.00 40 oz. Enclosed 6.70 10.00 4.75 56 oz. Metric (centimeters) Chassis 17.02 22.86 5.08 1134 gm. Enclosed 17.02 25.40 12.07 1422 gm.
Extended linear Accel/Decel range (to 30 sec.) .............-15A NEMA 4/12 Enclosure ...............................................Standard Forward/Reverse with Dynamic brake and zero speed detect. Direction controlled with SPDT switch, relay contact (dry contact switching), or NPN open collector. Once direction change is initiated, cannot be aborted until motor stops; prevents relay contact welding (available through 2 H.P.) 120 VAC ..................................................................-36M*/MA1 240 VAC ..................................................................-38M*/MA1
Other options are available, please consult factory for your requirement.
* Field installable on chassis version only.
Temperature .......................................................-10 to +45 C.
1 A version dynamic brake resistor rating - 50W (factory installable only).
AC Input Voltage ........................... 10% Rated Line Voltage
Input Frequency ....................................................... 50/60 Hz.
