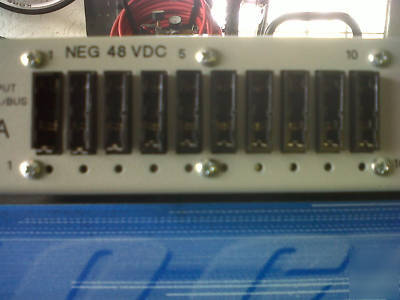

Telect hi pwr fp 10/10 20A p/n 20HPGMT05R
This high-power GMT 20A fuse panel operates with multiple 20A fuses that can be mounted adjacent to each other in thermally isolated fuse holders, providing distribution and overload protection for 20 circuits. Redundant connections increase panel reliability. Each panel can distribute a maximum current of 100A per bus (200A total).
* Dual bus (A and B) with 10 fuses per bus
* Dual stud (1/4" x 5/8" centers) input terminals
* Form C relay contacts provide reliable fail alarm connections
* Designation pin holder integrated into the panel (one pin holder per fuse)
* Fail alarm LEDs provide clear indication of blown fuse and power failures
* MTBF exceeds 750,000 hours per TR-TSY-000332
* Alarm cards and individual fuses can be replaced with the power on
* Clear polycarbonate cover (94V-0) protects input and output power connectors and wiring
Maximum input interrupt device
Maximum output protection device
Dual stud, 1/4" on 5/8" centers
Dual stud, #10 on 5/8" centers
