> Tektronix 5A18N dual trace plug-in
Tektronix 5A18N dual trace plug-in
Tektronix 5A18N Dual Trace Plug-In

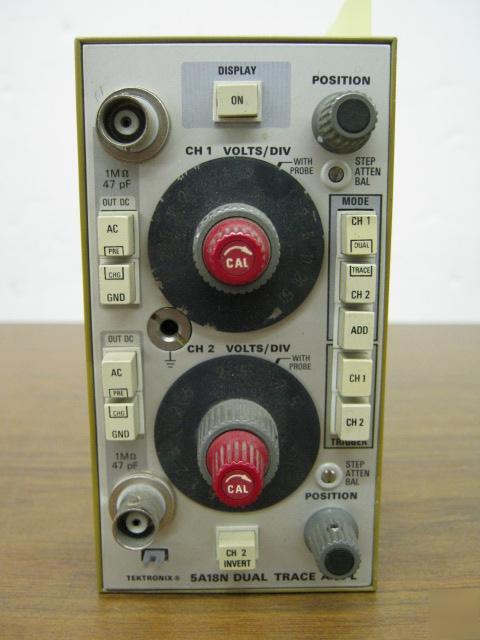

The 5A18N Two-Channel Amplifier Plug-in is for use in 5100-series scopes. The unit delivers bandwidth of dc to 2MHz at sensitivities to 1mV/div. To provide difference measurements of two signals in the ADD mode, simply invert the Channel 2 signal. You can select the internal trigger signal from either Channel 1 or Channel 2. For dual-trace X-Y operation, just plug the amplifier into the right plug-in compartment.
