Pressure/vacuum resin casting tank 24"dia x 48" long

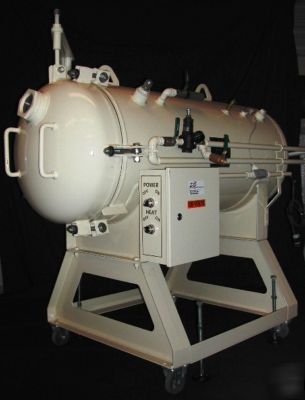

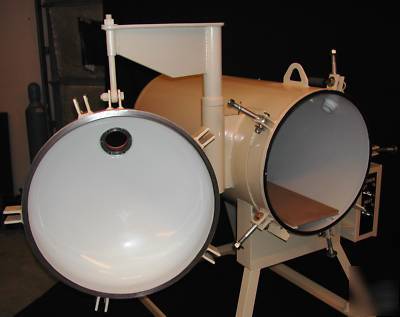

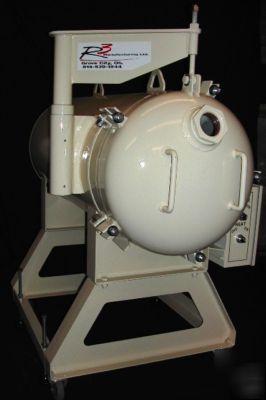

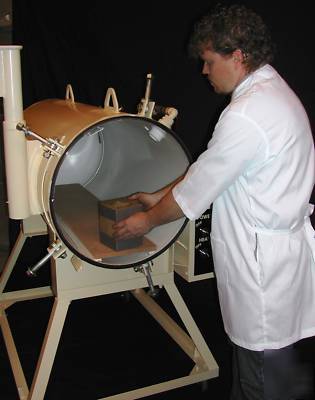

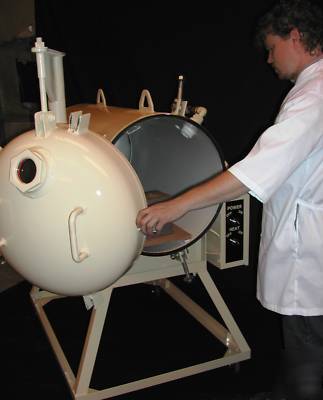

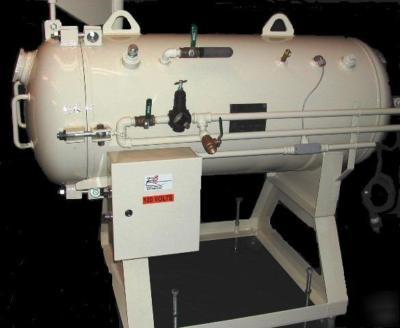

Pressure / Vacuum Resin Casting Tank
Attention -Model Shops, Taxidermists, Universities, Military,
Medical Research & Prototype Shops
Looking for a way to cast parts in a pressure tank, without using a converted paint pressure pot???
If you are currently experiencing air bubbles that are trapped by the resin while curing, then you need to add this tank to your process and eliminate trapped air pockets, air bubbles, and process your molds quicker with the heat option.
R3 Manufacturing Ltd is offering its most popular size with all the options, or with any combination of options that your shop needs.This tank has its own digital controlled internal forced air heating system, which means no heating bands to burn hands and waste energy to heat the tank from the outside in. The tank will come with a thick borosilicate glass window and explosion proof internal light for viewing your mold while it's being pressurized or under vacuum.
Our tanks are built in the U.S.A. and are ASME code compliant, stamped with the "U" rating.
PC2448 Pressure /Vacuum Tank Specifications
* Operational pressure 0-60psi 0-4.14bar

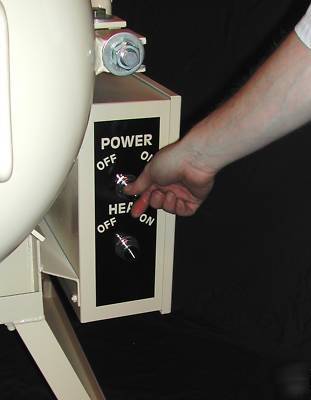

* Digital Forced Air Heating System- Operates on 120V 20amps up to 125F-81.5C

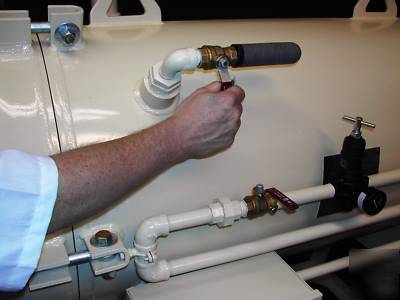

* Air input-requires 3/4npt fitting and system requires min 12cfm compressor or larger
* Vacuum Casting Port for filling molds with resin inside tank (requires a meter mix machine, and a single or two stage vacuum pump sold separately)
Contact us for more information, and we will sell you the tank of your choice. Different sizes available and many options to choose from.
Our office is open Monday -Friday 8:00am till 5:00pm EST if you have any questions feel free to contact us anytime. (***)539-1844office
Thanks for looking at our Pressure Tank Systems
