Keyence fu-48 fiber unit fiberoptic sensor

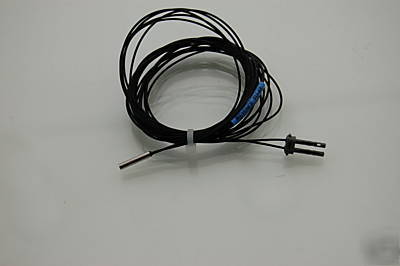

Keyence FU-48 fiber unit fiberoptic sensor
Keyence's FU-48 is part of the Fiber Unit (FU) series. The series features (from the Keyence website):
* Flexible Stainless Steel Jacket
* Hex-shaped Heads for Trouble-free Mounting
Specifics on the FU-48 from the Keyence catalog:
* Detecting method: Reflective
* Fiber unit length: 2m (6.6')
* Ambient Temperature: -40 to +158 F (-40 to +70 C)
* Minimum bend radius: R4 (R0.16") High-flex
* MEGA (S-APC ON): 130 (5.12")
* FINE (S-APC ON): 28 (1.10")
* Other power modes (detecting distance) - parentheses indicates S-APC ON:
* ULTRA : 5.12" (4.33") 130 (110)
* SUPER : 2.76" (2.17") 70 (55)
* TURBO : 1.97" (1.57") 50 (40)
* HSP : 0.87" (0.67") 22 (17)
* Smallest detectable object: gold wire 0.005 ( 0.0002")
For more information on the FU series, please visit the Keyence website:
http:// /products/sensors/fiberoptic/fu/fu.php
Or for a quick link to the FU Series specifics, including the FU-48:
Thanks for looking and let me know if you have any questions about the item, I will do my best to answer. The unit is sold new and is guaranteed NON-DOA with a 7 day ROR.
