Fisher scientific fb-gd-45-10 biotech bio tec gel dryer

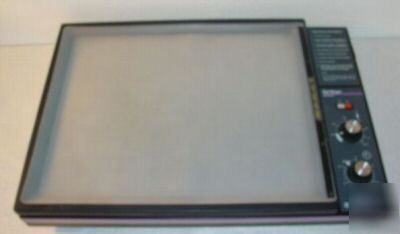

This listing is for a Fisher Sci gel dryer.
* List Price: 1587.55 in Fisher's Catalog
* The support pad was dried out, and discarded. Otherwise, this unit is 100% functional.
This is normally sold with the FB-GD-X1 dryer systems. Here is the info on the whole system. But NOTE that you are getting the gel dryer only. The vacuum system is sold seperately.
Integrates a gel dryer and vacuum system to provide a simple, effective, and reliable way to dry electrophoresis gels, while eliminating the hassles of dry ice and refrigerated traps. Dried gels are suitable for autoradiography, densitometry, or notebook storage.
* Large drying surface accommodates all sizes of gels, from DNA sequencing down to multiple smaller gels
* PTFE-resin-coated aluminum casting of gel dryer distributes heat uniformly, assuring quick drying without local hot spots that can crack gels

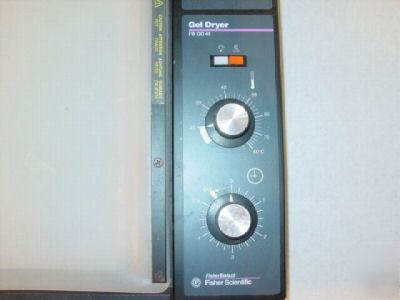

* The 720w heater has variable temperature adjustment between ambient and 80 C (176 F)
* Built-in five-hour timer can be set on HOLD for continuous operation
* Silicone rubber sealing sheet
* Dual pumping action works with the heat from the gel dryer to dry gels fast
* Hot vapors from the gel dryer are condensed and isolated from the rest of the system by a room-temperature vapor pump
* A compact, high-efficiency dry vacuum pump provides the deep vacuum needed to get the last liquid out of the gel
* The two-pump system works as quickly as a two-stage vacuum pump and cold trap, and faster than a conventional stand-alone diaphragm pump or water jet pump
* The trapping medium doesn't mix with the condensate, so it can be reused
* System is easy to use and maintain
* 5 ft. (1.5m) of PVC vacuum tubing
* Note: Gel Dryer and Vacuum System are also available separately
141/2 x 181/2 in. (37 x 47cm)
Variable adjustment from ambient to 80 C (176 F)
Built-in; 0 5 hr.; HOLD function for continuous operation
For 1/4, 3/8, or 1/2 I.D. tubing
173/4 x 253/4 x 37/8 in. (45.1 x 65.5 x 9.8cm)
151/2 x 111/4 x 14 in. (39.4 x 28.6 x 35.6cm)
Accepts 3/8 in. I.D. hose (9.5mm I.D. hose nipple)
All of this information can be found at https://www1.fishersci.com/Coupon?cid=1328&gid=147936&details=Y
