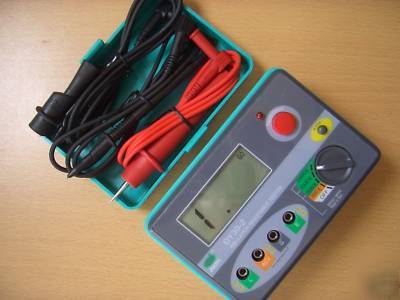

New 20G/2500V insulation resistance meter,tester,DY30-2
"20G / 2500V Digital Insulation & Resistance Meter /Tester "
. LCD, 3 1/2 Digit, Maximum reading 1,999
. 0 to 20G ohms insulation / resistance test
. 500V / 1000V / 2,500V Selectable Test Voltages
. AC Voltage Measurement : 0 to 700V
. Low power CMOS Dual integration design. auto zero adjustment, auto polarity and overflow display
. Protection against overload to the limits
. Insulation test for transformer, motor, cable, switch;
. Electronic components insulation / resistance test such as resistance, capacitor, diode..etc;
. Test for Electrical Applicances;
. Electrical Maintenance, experiments, evaluation / quality tests
. Display : LCD, 3 1/2 Digits, 1999 Counts
. Measuring Method : Dual-slope integration A/D Convertor
- Measure Range : 0 to 20G ohms
- Accuracy : 0 to 200M Ohm ( +/- 3 % + 5 digits )
200M to 10G Ohms ( +/- 5% + 5 digits )
10G to 20G Ohms ( +/- 10% + 10 digits )
- Rated test voltage : 500V / 1000V / 2500V Selectable
- AC Measurement : 0 to 700V AC ( +/- 2% + 5 digits )
. Accessories : Instruction manual , panel protection cover, carrying case, test leads
