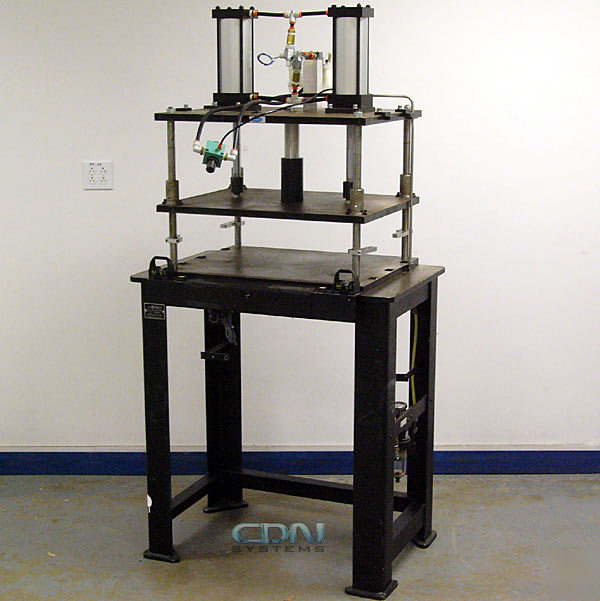

Danly air press dual ram 4-post 24"X18" w/ regulators
Danly Air Press Dual Ram 4-Post 24"x18" w/ Regulators
This press was removed from a system that was working when it was parted out, and we verified that the press plate moves up and down smoothly. The pressure to the rams is limited to 125PSI by the regulators, but they are capable of taking up to 250PSI for a theoretical max. force output of 6,280lbs. The big post in the middle of the top plate limits upward travel, but if it were removed, total stroke of the ram could be as long as 7.5". Force output numbers are from the Numatics air cylinder catalog and represent approximate theoretical maximum numbers, not accounting for the press head plate's weight.
* Max. output pressure as equipped: 3140lbs extend, 2950lbs retract
* Max. output pressure @ 250PSI: 6280lbs extend, 5540lbs retract
* Max. work area: 24"W x 18"D (measured between the guide rods)
* Max. travel: 7.5" (4" as currently set up)
* Overall dimensions: 36"W x 25"D x 74"H
* 2pcs. Numatics Actuator F1AR-08A1E-AAA0, 4" bore x 8" stroke, Pmax 250PSI
* Greasable, replaceable guide rod bearings
* Bimba speed control fittings
* Numatics R21R-04 air regulator to cylinders
* Numatics L23BA452B solenoid valve (up/down valve)
* Parker 07F31BC air filter/separator
* 2pcs. Banner OTBVR81 finger switches
