2000 marvel-spartan fully automatic horizontal bandsaw

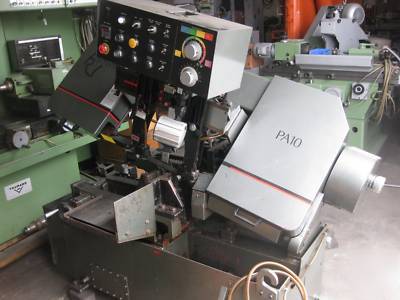

Marvel - Spartan Automatic Horizontal Bandsaw
In 1st class condition both working & cosmetically. This machine runs flawlessly and is super clean in & out. Fully automatic with multi stroke in-feed capability. Roller conveyor & extra stock supports.
Marvel -Spartan PA10 Automatic Horizontal Bandsaw
Capacity (Round) 10"
Capacity (Rectangular) 8" x 12"
Blade Size 11'6" x 1" x .035"
Blade Speed 70-278 sfpm
Feed Force 0-300 lbs
Blade Motor 3HP
Automatic Barfeed Length 43"
Automatic Barfeed Load Capacity 5600 lbs
Automatic Bar feed Max Travel 16"
Automatic Bar Feed Max Indexes , Multi 9x
Work Height 23"
Machine weight 2700 lbs
Includes (2) Additional Roller Stock Supports
Space Saving Moveable Saw Head
Saw Head Travels on Ground Square Ways Hydraulically Lifted Outer Table with Ball Transfer
Built in Positioning Scales on Inner Table
Hydraulic Blade Tension, Infinitely Variable Blade Speeds with Electric Tachometer, Digital Lenth Setting, Multi-Index, Piece Counter, Out of Stock Switch, Motion Detector, Fast Approach, Work Light and Powered Blade Cleaning Brush
