New intek twin direct steam mixer kettles-tilt-2-60 gal-

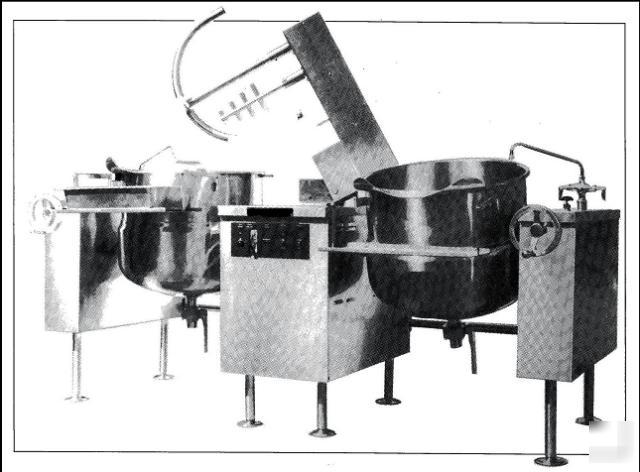

Intek Twin Direct Steam Mixer Kettles-Tilt-2-60 Gal-NEW
Intek Direct Steam Tilting Mixer Kettles
2-60 Gallon Kettles - Leg Mounted
* Two agitators, a primary stainless steel scraper/agitator, and a secondary high speed mixer.
* Both agitators are removeable for cleaning and no tools needed to remove.
* Main power switch, mixer lift switch and variable speed control.
* The bridge is constructed of 10 gauge stainless steel and contains two heavy duty hydraulic motors to drive the agitators.
* The bridge is power tilt, and swings 140 degrees out of the way for kettle tilting and cleaning.
* Stainless Steel constuction, type 304 satin finish.
* A double wall kettle interior forms a steam jacket around the lower 2/3 of the kettle.
* The tublar legs are constructed of stainless steel pipe fitted with four hole adjustable flange feet for securing to the floor.
* Kettle tilts forward a full 90 degrees for complete emptying.
* 2 Direct steam, twin tilting kettles operating at a maximum of 35 PSI
* Tilting mechanism is self locking for positive stop action.
* The mixer is a variable speed unit power by a 5 HP electric motor driving a hydraulic pump.
* Two heavy duty hydraulic motors used to drive the agtators.
* Direct Steam. Standard hydraulic power supplies are either
208 V, 3 Phase, 60 Hz or 240 V, 3 Phase, 60 Hz.
Exterior Dimensions - 58.5" x 108" x 48"
Limited Warranty: One (1) Year (Parts and Labor)
