Star SR16 swiss type cnc lathe automatic screw machine

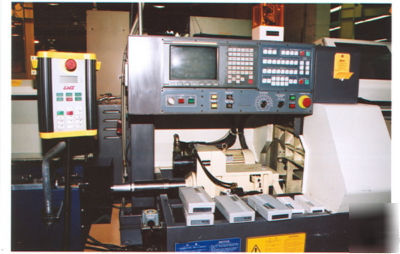

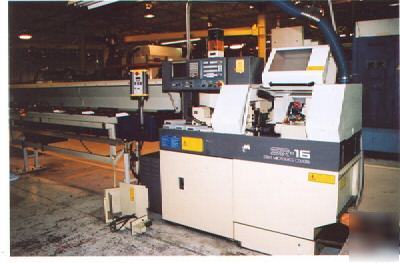

STAR SR-16 SWISS TYPE CNC LATHE, Model SR-16, S/N 060887, New 1996
Maximum Turning Diameter 16 mm (5/8")
Maximum Head Stock Stroke 205 mm (8")
Maximum Drilling Capacity Stationary Tool: 8 mm (5/16")
Maximum Drilling Capacity Power Driven Attachment: 5 mm (3/16")
Maximum Tapping Capacity Stationary Tool: M8 x Pl.25
Maximum Tapping Capacity Power Driven Attachment: M5 x PO.8
Maximum Milling Capacity 0 mm (3/8")
Maximum Die Cutting Capacity M8 x Pl.25
Maximum Slotting Capacity 1.5 mm Width x 4 mm Depth
Rapid Feed Rate - X 12,000 mm/min.
Rapid Feed Rate - Y 16,000 mm/min.
Rapid Feed Rate - Z 18,000 mm/min.
Rapid Feed Rate - XB 18,000 mm/min.
Rapid Feed Rate - ZB 18,000 mm/min.
Maximum Turning Feed Rate - X 6,000 mm/min.
Maximum Turning Feed Rate - Y 6,000 mm/min.
Maximum Turning Feed Rate - Z 6,000 mm/min.
Maximum Turning Feed Rate - XB 6,000 mm/min.
Maximum Turning Feed Rate - ZB 6,000 mm/min.
Minimum Input Increment - X .001mm/.0001" (Diameter Value)
Minimum Input Increment - Y .001mm/.0001" (Diameter Value)
Minimum Input Increment - Z .001mm/.0001"
Minimum Input Increment - XB .001mm/.0001" (Diameter Value)
Minimum Input Increment - ZB .001mm/.0001"
Operation Mode Right Handed Machine
Speed Control S Code + Direct 5 Digit Command
Main Spindle Rotational Control Inverter Control
Main Spindle Minimum Indexing Angle 15 Degrees (24 Divisions)
Main Spindle Bore 20 mm (49/64")
Maximum Chucking Diameter 16 mm (5/8")
Maximum Part Length for Front Ejection 80 mm (3-1/8")
Maximum Parts Projection Length 30 mm (1-5/32") Distance from Collet End
Spindle Speeds 400 - 6,000 RPM
Speed Control S Code + Direct 4 Digit Command
Rotational Control Inverter Control
Spindle Minimum Indexing Angle 15 Degrees (24 Divisions)
Sub Spindle Motor .75 KW / 1.2 KW (30 Min.)
Type: Gang Tool Post - 2 Axis Control
Number of Power Driven Tools 3
Tool Shank Size 12 x 95-120 / 12.7 x 95 - 120
Use Cross Drilling/Milling Spindle
Type R16 (Schaublin Type F20, Art No. 87)
(Star Standard Part Equivalent to C16)
(Weukomm Type B Art No. 39.001)
HYDRAULIC UNIT SPECIFICATIONS:
Installation Method Installed Separately Outside Machine
Hydraulic Tank Capacity 20 L (5.2 Gallons)
Suitable Hydraulic Oil Viscosity Grade: ISO V632
Recommended Oil Shell Tellus Oil 32
Coolant Tank Capacity 100 L (26.4 Gallons)
Safety Device Coolant Oil Level Detector
Cutting Oil Water Insoluble Cutting Oil
LUBRICATING UNIT SPECIFICATIONS:
Lubrication Part Rectilinear Guide Bearing Portion
Oil Ejection Amount 2.5 cc/30 min.
Tank Capacity .8 L (.2 Gallons)
Safety Device Lubricating Oil Level Detector
Suitable Lubricating Oil Viscosity Grade ISO VG68
Recommended Oil Mobil Vactra Oil No. 2SLC
3 SPINDLE END WORKING ATTACHMENT:
Maximum Drilling Capacity 8 mm (5/16")
Maximum Tapping Capacity M8 x Pl.25
Maximum Chucking Diameter ER16 10 mm (.39")
Maximum Die Diameter 2.5 mm (.98")
3 SPINDLE UNIT FOR BACK WORKING:
Maximum Drilling Capacity 7 mm (1/4")
Maximum Chucking Diameter 10 mm (.39")
Maximum Tapping Capacity M6 x Pl.0
Maximum Chucking Diameter ER11 7 mm
Sub-Spindle 15 Degree Indexing Unit with Synchronous Phase Control of
Air Blow in Sub-Spindle to Clear Chips
NSK Air Spindle Milling Heads with 30,000 RPM Air Motors

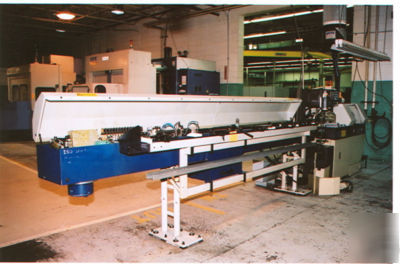

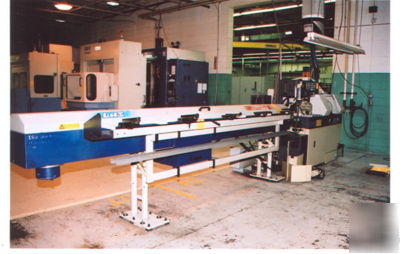

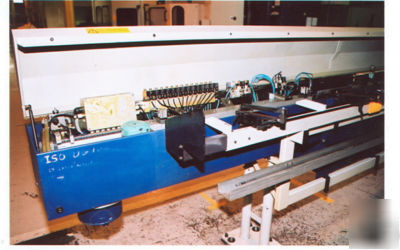

LNS Mini-Sprint S2 Barfeed, Serial #46826-96
Broken Belt Detector for Sub-Spindle
Cabinet with Assorted Tooling & Collets

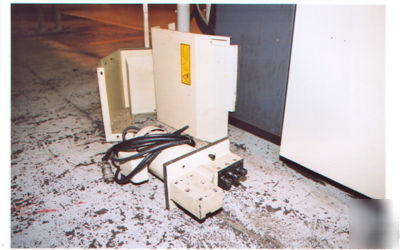

3-Spindle Cross Drilling/Milling Unit
Sub-Spindle Digital Tachometer
Main Spindle Inner Tube: 11.7 mm
2.2 KW (Continuous) Main Spindle Motor
Machine Wired for 3 Phase, 60 Cycle, 220 Volt
Main Machine: 84" L-R x 45" F-B x 84" H
Barfeed: 184" L-R x 44" F-B x 50" H
Tooling Cabinet: 30" L-R x 30" F-B x 34" H
Coolant System: 44" L-R x 30" F-B x 17" H
