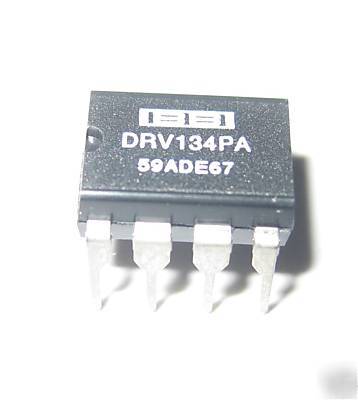

> Burr-brown DRV134PA audio balanced line drivers DRV134
Burr-brown DRV134PA audio balanced line drivers DRV134
The DRV134 and DRV135 are differential output amplifiers that convert a single-ended input to a balanced output pair. These balanced audio drivers consist of high performance op amps with on-chip precision resistors. They are fully specified for high performance audio applications and have excellent ac specifications, including
low distortion (0.0005% at 1kHz) and high slew rate (15V/ s).
The on-chip resistors are laser-trimmed for accurate gain and optimum output common-mode rejection. Wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. They easily drive the large capacitive loads associated with long audio cables. Used in combination with the INA134 or INA137
differential receivers, they offer a complete solution for transmitting analog audio signals without degradation.
* LOW DISTORTION: 0.0005% at f = 1kHz
* WIDE OUTPUT SWING: 17Vrms into 600
* HIGH CAPACITIVE LOAD DRIVE
* WIDE SUPPLY RANGE: 4.5V to 18V
* LOW QUIESCENT CURRENT: 5.2mA
* 8-PIN DIP, SO-8, AND SOL-16 PACKAGES
* COMPANION TO AUDIO DIFFERENTIAL LINE RECEIVERS: INA134 and INA137
* IMPROVED REPLACEMENT FOR SSM2142
* AUDIO DIFFERENTIAL LINE DRIVERS
* GRAPHIC/PARAMETRIC EQUALIZERS
* DIGITAL EFFECTS PROCESSORS
* INDUSTRIAL INSTRUMENTATION
