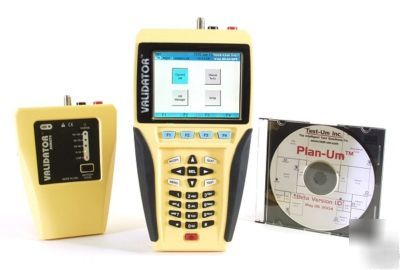

Test-um NT950 validator network lan / cabling certifier
Network LAN / Cabling Certifier

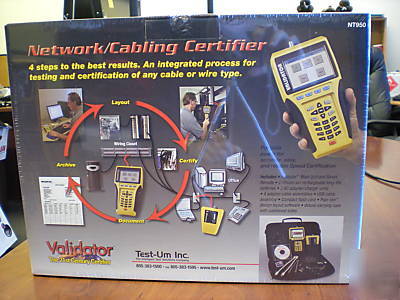

NEW in Factory Sealed Box - Factory Warranty
* 4 inch TFT LCD color screen
* USB and Serial Port Interfaces
* Full navigation and keyboard buttons
* LiION rechargeable battery for both main unit and remote
* Supports IEEE 802.3 data speed carrying specifications to 1 gigabit
* Store data on either a laptop/PC or in flash card memory up to 2 GB
* Continuity testing on telephone line, report length
* Continuity testing on coax lines, report length
* Continuity testing of single pairs (security, speaker wires)
* Diagnose failing cables per 568A/B
* Tests shielded or unshielded Cat3, 5, 5E, 6
* Distance to fault (open or short) TDR
* Length of each pair tested
* Tone generation capability
* Tests interconnect specifications per TIA 568/570, including opens, shorts, mis-wires, split pairs, etc.
* NEXT-All combinations on all pairs (12)
* Echo Testing (Return Loss) impedance mismatches
* Home/Office layout and outlet plan generation for quote
* Test schedule of all outlets and cable runs
* Defines cable types within defined pairing
* Download testing plan and number of outlets/location for print
* Test to plan and save results in an archive file
* Print end of job report for billing
* Upload results and print a report
* Archive jobs for future reference
* Upload test results to PC for either print or remote storage
