Phd SLC55X200-ae-ar-db-e slide SLC85X200-ae-ar-db-e cyl

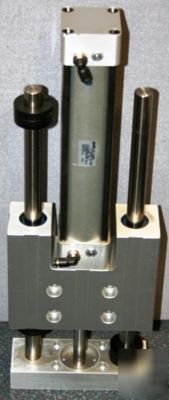

PHD SLC55X200-AE-AR-DB-E Slide & Cylinder SLC85X200-AE-AR-DB-E
$842.35 (1 week lead time) (OEM 12/23/08 MQF)
New Generation Series CV Cylinder design enhancements include increased width of PTFE wear ring for greater support, durability, and increased piston seal retention for higher speed applications. A new imperial design of the Series CV Cylinder is available with imperial ports, stroke length, and rod for easy integration in imperial facilities. A rod seal retention ring has been added to improve performance in extreme applications. Units affected by these enhancements include Series SK/SL, SG and SCV Slides.
Standard features of the Series CV Cylinders include rugged and lightweight anodized aluminum alloy heads, caps, and tubes. Port Controls regulate speed through the entire stroke. Standard alloy steel and optional corrosion resistant stainless steel piston rods are hard chrome plated for maximum life and durability. Female threads and a variety of mounting accessories provide ease of integration.
* A wide range of mounting accessories provides ease of design into any application.
* Both standard and corrosion resistant piston rods have hard chrome plating for maximum life and durability.
* The versatile design allows flexibility for custom modifications to meet your needs.
* Internal shock pads are standard on all sizes, eliminating metal to metal contact.
* Cylinders including port and cushion controls are easily field repairable maximizing your investment.
* Drop-in replacement of previous design
* An imperial design is available in addition to standard metric units.
* PTFE wear ring (CVA, CVB) provides piston support and enhances durability.
* Piston seal is supported for higher speed applications.
* Stroke lengths on metric units are available in 1 mm increments.
Anodized aluminum alloy heads, caps and tubes, durable, robust, longer life, drop-in replacement.
* General industrial automation
Series SK/SL Slides are now provided with Series CV Cylinders which provide many advantages. All Series SK/SL Slides can have either linear ball bushings or TC fluoropolymer composite bushings for optimum performance and are available in six sizes to fit a wide range of applications.
* All SK and SL Slides can have either linear ball bushings or TC fluoropolymer composite bushings to provide optimum performance with minimum slide deflection for all types of applications.
* SK and SL Slides are available in six sizes for application to a wide range of tasks.
* Four bushings allow the hardened and precision ground shafts to move smoothly, ensuring rugged, precise linear motion of the tool plate and load.
* Oversize guide shafts are available with TC bushings for maximum rigidity and minimum deflection.
* Linear ball bushings and TC bushings have internal lubrication for maximum life.
* Linear ball bushings provide lowest friction, highest load capacity, and optimum accuracy of tool plate motion.
* Units with linear ball bushings have shaft wipers to exclude external contaminants.
* Anodized aluminum alloy tool plates with combination tapped and counterbored holes and a precisely machined mounting surface permit easy attachment of tooling.
* Slides are available without a cylinder and supplied with complete hardware for mounting standard VDMA/ISO cylinders.< /LI>
* Series SK and SL Slides are provided with Series CV Cylinders (sizes 72 - 76 only)
* Units specified with the Hushcontrol Advantage provide superb speed and deceleration control and environmentally friendly noise levels.
* Internal shock pads are standard.
* See additional benefits in the Series CV catalog.
* Provisions for 8 mm proximity switches are standard on all units.
* Dowel pinholes are standard on housings and tool plates, and are available with a variety of optional fits.
* Units bolt and dowel directly to metric Series SG gantry slides without need of a transition plate. (sizes 71-75 only)
* SLC: Long Body Slide Type C
* AE: Travel adjustment and shock pads on Extension
* AR: Travel adjustment and shock pads on Retraction
* DB: Cushion controls in Both Directions (standard positions 1 & 5)
* E/M: Magnetic pistons for use with reed switches
