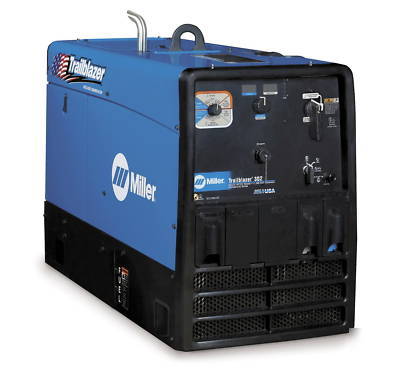

Miller trailblazer 302 welder mig-tig-stick 907216
The professional's choice for flawless multi-process arc performance and code-quality welds. The Trailblazer 302 delivers more CV to enhance Stick welding performance while MIG and FCAW performance is superior with any wire. The unbeatable Trailblazer 302 has an added AC output for TIG aluminum welding. And, professionals with a Trailblazer get more work done because it features two GENERATORS! One 4-pole, 3-phase generator provides a smooth welding arc, while the second provides strong auxiliary power in which there is no interaction between the welding arc and power tools.
11,000 watts of Accu-Rated - Not Inflated generator power. Cranks out enough power for most applications: job site, farm/ranch, or home. 9,500 watts of continuous power.
Exclusive! Trailblazer Series offers the ONLY two-generator system- one for welding and one for generating power - meaning no interaction between tools and the welding arc, and it has the strongest generator power while welding.
Improved Arc Performance. Legendary four-pole rotor and 3-phase weld output for the smoothest, most stable and flawless multi-process arc in their class. Now with preset DIG settings (Stick), Adaptive Hot Start , and Lift-Arc /Scratch Start TIG with Auto-Stop .
Engine iIdles 3-4 seconds after starting to extend engine life and reduce fuel consumption.
* Air Carbon Arc (CAC-A) Cutting and Gouging (Rated: 3/16 in carbons, Capable: 1/4 in carbons)
* Air Plasma Cutting and Gouging (PAC) with Optional Spectrum Models
* Maintenance and Repair
Rated Output at 104 F (40 C)
* MIG/FCAW: 300 A at 25 V, 100% duty cycle
* DC TIG/Stick: 280 A at 25 V,
* AC TIG/Stick: 200 A at 25 V, 60% duty cycle
* DC Stick/TIG: 10 - 300 A
* AC TIG/Stick: 30 - 225 A
* MIG/FCAW: 13 - 35 V, 325 A
Generator Power- rated at 104 F (40 C)
* Accu-Rated 10,500 Watts Peak
* 9,500 Watts Continuous
* Kohler: 23 HP at 3600 RPM (gas or LP)
* Kohler: 20 HP at 3600 RPM (LP)
* Robin: 22 HP at 3600 RPM (gas)
Air-cooled, Gasoline or LP
