Dyonics 460 3-ccd video endoscopy camera head endoscope

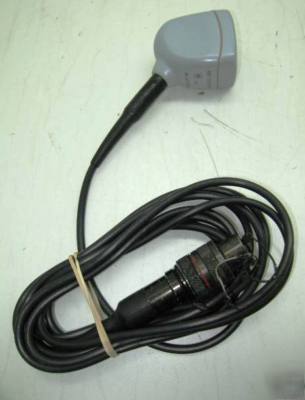

Smith & Nephew Dyonics 460H Endoscopy Video Camera Head
This camera head was removed from service in working order and comes with a 60-day warranty. It has been biomed tested and is ready for service. It is in outstanding condition, both cosmetically and functionally. This model is still sold and supported by Smith & Nephew. Click here for detailed specifications from the Smith & Nephew web site.
The Smith & Nephew 460H 3-CCD Camera Head is a plug-and-play imaging solution engineered to maximize efficiency in the OR. Advanced technology in the 460H Camera Head delivers exceptional surgical images for all endoscopic procedures. Excellent engineering, efficient design, and exceptional performnce - the qualities you expect from the leader in endoscopic imaging.
460H 3-CCD Camera Head Specifications
Visualization Optics Custom engineered lenses and filters optimized for medical environments delivering exceptional image quality
Imaging Device 3 CCD 1/2" Interline Transfer Micro-Lens high sensitivity imaging sensor
NTSC: 768 horizontal x 494 vertical pixels
PAL: 752 horizontal x 582 vertical pixels
Resolution Horizontal: >700 lines (RGB)
Vertical: Interlaced >370 lines
Sterilization Chemical and gas sterilants
Surgical Interface Lens Mount C-mount, compatible with a full line of direct view Arthroscopes, VideoArthroscopes and Couplers
Remote Control 3 buttons for remote control of the CCU and accessories
Environmental Dimensions 1.69" diameter 2.44" long x 2" (4.29 cm x 6.2 cm x 5.08)
Operating Temperature 50-95 F (10-35 C)
