Ac detector voltage safety tester voltalert probe stick

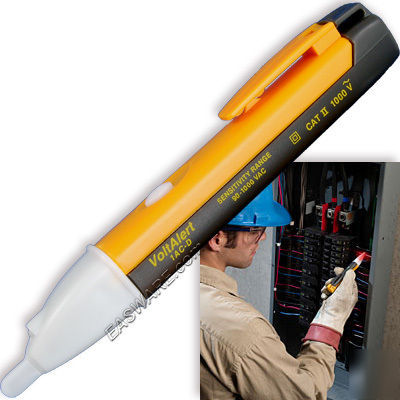

Pen Style Non-Contact AC Voltage (90V~1000V) Detector with Beeper and LED flashlight- #1AC-D
Red LED voltage indicator, glow at the tip indicates the presence of voltage
Build-in LED flashlight, convenient for finding
Build-in Beeper provide better alert
Power supply: 2x 1.5V AAA Size Battery
Operating Voltage: 90V ac to 1000V ac
Battery Life: standby 1.5years, testing 6 hours
Operating Temperature: -10 to 50 C
Operating Humidity: 80% (0 to 30 C)
Storage Temperature: -10 to 50 C
Place two AAA alkaline batteries into unit and replace the battery cover as indicated in figure
Before each use, make sure tester work properly by testing a known working circuit that is within the
When the tip of tester lights, it means voltage exist, if no any indication, voltage could still be exist. (In case of the batteries going to be exhausted, the tester will not work properly, please replace new batteries)
When the tip of tester is near to live wire (L) or the hole L of a socket, red light appears in the top of tester. In this way the presence of AC voltage can be checked
Always keep your finger away from the white part of the tester when testing. (However you can put another hand on the object's insulated surface near to the probe to avoid static misleading wrong indication)
Do not rely on this unit in case of work on shielded wire. Operation may be affected by difference in socket design, insulation thickness and type
