Maxim MAX132CNG ±18-bit adc with serial interface dip
Maxim MAX132CNG 18-Bit ADC with Serial Interface DIP
Maxim MAX132CNG 18-Bit ADC with Serial Interface 24-pin DIP - NOS

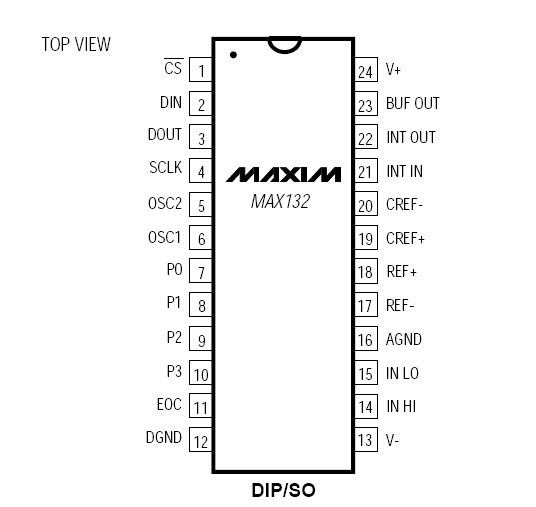

PIN-PACKAGE: 24 Narrow Plastic DIP
The MAX132 is a CMOS, 18-bit plus sign, serial-output,
analog-to-digital converter (ADC). Multi-slope integration
provides high-resolution conversions in less time
than standard integrating ADCs, allowing operation up
to 100 conversions per second. Low conversion noise
provides guaranteed operation with 512mV full-scale
input range (2 V/LSB). A simple 4-wire serial interface
connects easily to all common microprocessors, and
twos-complement output coding simplifies bipolar measurements.
Typical supply current is only 60 A and is
reduced to 1 A in sleep mode. Four serially programmed
digital outputs can be used to control an
external multiplexer or programmable-gain amplifier.
High resolution, compact size, and low power make this
device ideal for data loggers, weigh scales, data-acquisition
Pressure, Flow, Temperature, Voltage
http://www.datasheetcatalog.org/datasheets/134/447264_DS.pdf
