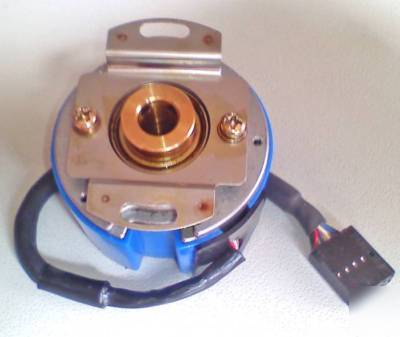

Japan through hole encoder for cnc motor control 2500PR
Through Hole Encoder for Cnc Motor Close Loop Control
Outside Dia. 48mm Hole Through Hole Dia 8mm
3 Phase Output A B & Z (8 Wires)
RED : VC BLK : 0V BLU : A+ BRW : A-
GRN : B+ VIO : B- WHT : Z+ YEL : Z-
MENU: http://tamagawa-seiki.com/pdfe/1228n51.pdf
Free send by register mail. Normally takes 7-10 days
