Mastech pc computer RS232 interfaced digital multimeter

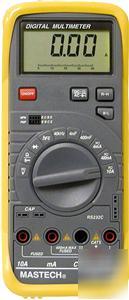

Mastech Auto/Manual Range DMM with RS232 Interface, MAS344
The Mastech MAS344 is a digital multimeter with a RS232 interface, via which you can connect your PC to monitor the real time measurement and also plot and save your data on your computer. This meter is auto/manual range selectable, you can use it to measure a wide range of parameters including AC/DC voltage and current, as well as resistance, capacitance, frequency and so on. This meter is brand new in its factory box with a one year manufacturer's warranty.
* DC VOLTAGE: 4/40/400V 0.5%, 1000V 0.8%,
* AC VOLTAGE: 4/40/400V 1.2%, 750V 1.5%,
* DC CURRENT: 4/40/400mA 1.2%, 10A 2.0%,
* AC CURRENT: 4/40/400mA 1.5%, 10A 3.0%,
* RESISTANCE: 400/4K/40K/400K/4M 1.2%, 40M 3.0%,
* CAPACITANCE: 4/400nF 4.0%,
* AUTO RANGE & MANUAL RANGE,
* RS232C STANDARD INTERFACE,
* DISPLAY: DIGITAL AND ANALOG DISPLAY, 3999 COUNTS AND 38
SEGMENTS BAR GRAPH. DIGIT IS 15mm HIGH.
