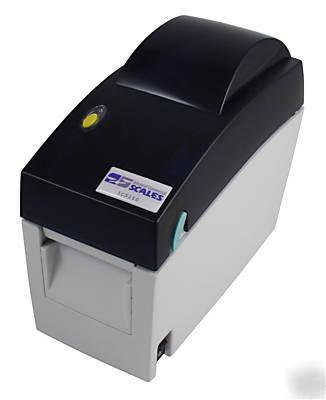

Ics 250 thermal label printer w/software
High-quality desktop label and receipt printers deliver unmatched reliability and versatility. ICS' Desktop printer family offers a comprehensive choice of direct thermal models for two and four-inch wide printing each with distinctive characteristics to ensure your specific application is fully satisfied.
* Resolution: 203dpi (8 dot/mm)
* Print Mode: Direct Thermal
* Sensor Type: Reflective sensor (Black Mark) - movable, Left-Centralize 23.5mm, See through (gap) - centralize unmovable
* Sensor Detection: Gap label, Black Mark Label, Plain paper or fanfold paper, Receipt paper, Label Length detecting.
* Print Speed: 50.8 mm/second ~ 101.6 mm/second (2IPS~4IPS)
* Print Length: 1727 mm (68")
* Print Width: Max. 54 mm (2.12")
* Label Roll OD: Maximum 127 mm (5")
* Core: 25.4 mm (1") / 38.1 mm (1.5")
* Width: 15 mm (0.6") ~ 60 mm (2.36")
* Printer: EZPL (Firmware Downloadable)
* Language Software: Niceware Windows (2000, NT, XP, Vista) drivers and label making software
* Resident Fonts: 11 resident alphanumeric fonts (6,8,10,12,14,18,24,30 and 16x26) which are expandable 8 times horizontally and vertically. Asian font and windows font downloadable. All fonts in 4 directions rotation (0,90,180,270 degrees), Asian fonts in 8 directions rotation.
* Fonts Download: Windows bit-map fonts, True Type Font (ver.2.XX) and Asian font downloadable
* Interface: Serial port (DB-9), USB2.0 Device
* Interface Setting: Baud rate 4800 ~ 115200, XON/XOFF, DSR/CTS
* Standard: 4MB Flash / 8MB SDRAM
LED Display: LED Light Power (RED, Orange, Green) Multi-function feed button
* Power: 100~240VAC, 50/60 Hz
* Safety: CE, FCC Class A, CCC, CB, cUL, BSMI
* Weight without options: 3.96 lbs (1.8 kg)
Environment Operating temperature
* Operation Temperature: 40 F to 104 F (5 C to 40 C)
* Storage/transportation temperature: -40 F (-20 C) to 122 F (50 C)
* Operation Humidity: 30-85%, non-condensing. Free air.
* Storage Humidity: 10-90%, non-condensing. Free air.
