Lot of 18 american video single screen splitters

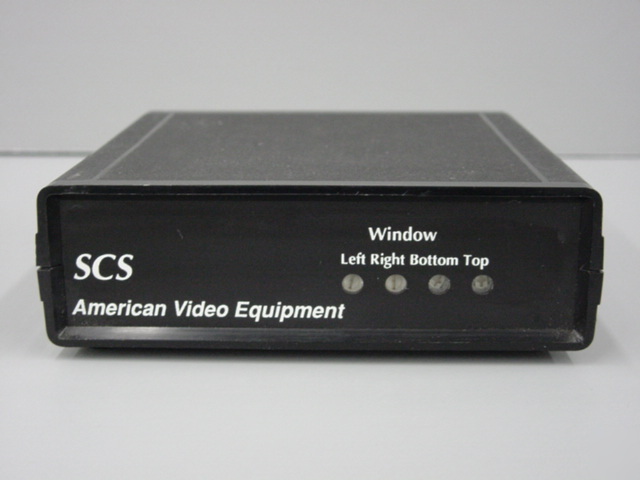

Lot of 18 American Video Equipment Single Screen Splitters
The American Video Equipment Single Channel Splitter (SCS) is a multipurpose screen splitter or window inserter. The simple front panel controls allow the window to be placed anywhere on the screen with any size. The master camera can be any RS-170 video source with no genlocking required. The slave camera must be genlocked with the Horizontal or Composite Sync output. The provided Vertical Sync is optional for cameras that require it.
The sync levels are adjustable to lock almost all available cameras. The overall video output level is adjustable to compensate for low video levels. To maintain picture balance between the two cameras, a slave balance control is provided to match the input video levels of the two cameras.The SCS can be operated from 9-12VDC or UL rated wall transformer (not included). Its compact size allows for easy mounting and its unitized PCB allows for embedded applications and high reliability.
* Power Supplies Not Included *
* An item said to be in working condition but received DOA can be returned for replacement or refund (when no replacement is available) if we are notified within 7 days of receipt of product.
* An item stated as a "parts/repair item" can not be returned for replacement or refund.
* Pictures may be representational only and not of the exact item if we have more than one in stock.
