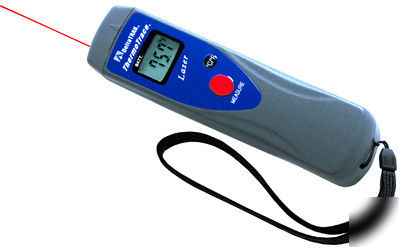

Deltatrak - thermotrace ® infrared thermometer w/laser
INFRARED THERMOMETER WITH LASER
-40 F to 590 F (-40 C to 310 C)
* Lightweight, sleek and compact
* Instant non-contact surface temperature measurement
* Useful with moving objects or for hard to reach places
* Highly accurate when compared to competitive models
* Temperature Range / -40 F to 302 F (-40 C to 150 C)
* Field of View / D:S = 8:1 At D = 1 meter (39.4 in.), S = 125 mm (4.9 in.)
* Accuracy / 3.6 F ( 2 C) from 32 F to 590 F (0 C to 310 C), otherwise 2% of reading
* Display Resolution / 0.1 from -40 to 212 (F or C), otherwise 1
* Response Time / Less than 1 second
* Sighting Method / Off-set Laser
* Environmental Operating Range / 14 F to 122 F (-10 C to 50 C), 0 to 95% R.H. w/o condensation
* Repeatability / 2 F (1 C) of reading value
* Battery / 9v alkaline (90 hour life)
* Size / 6 in. (L) x 1.5 in. (W) x 1.5 in. (D) (153mm x 38mm x 39mm)
* Weight / 4.5 oz. (127g) including battery
* Body Casing / Polycarbonate and ABS plastics
* Certification / CE Mark, N.I.S.T. traceable
