Cni 473NM blue laser complete w/ driver

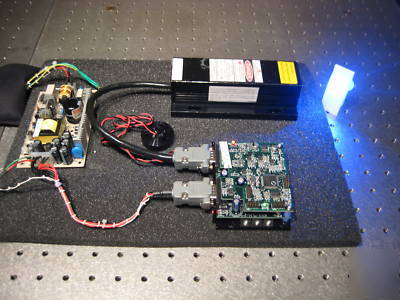

This is a complete system. It includes a CNI laser head, BW Tek laser diode driver/ TEC controller, and 5V power supply.
The laser head is CNI model MBL10. These systems were removed from portable Raman Spectroscopy machines.
During warmup the beam is Tem01, however after a couple minutes the beam turns into a nice oval Tem00 beam. The beam is slightly diverging. If needed, a simple long focal length lens can be used to collimate the beam. These lasers were originally fiber coupled for sample illumination, hence no need for perfect collimation.
Here is your chance to but some CHEAP BLUE PHOTONS! I have a few of these, but this is one of the stronger ones I've tested.
