Pitsid packing gauge 30 cm long w case -1.5MM-3.5MM

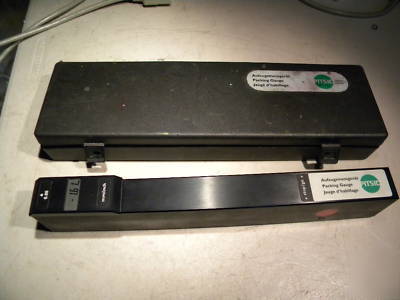

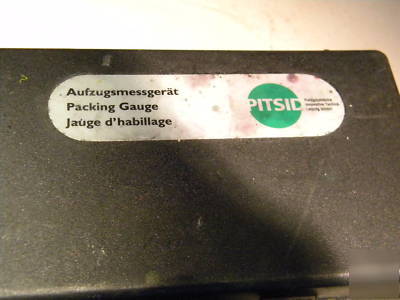

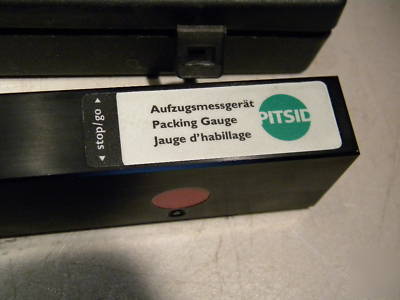

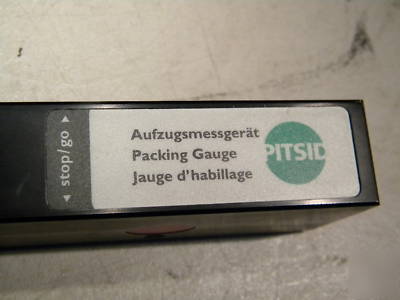

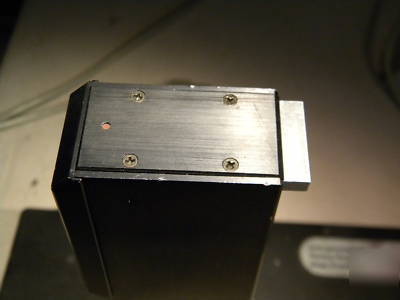

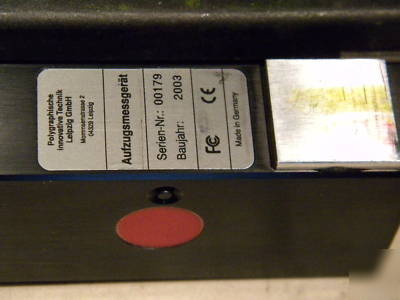

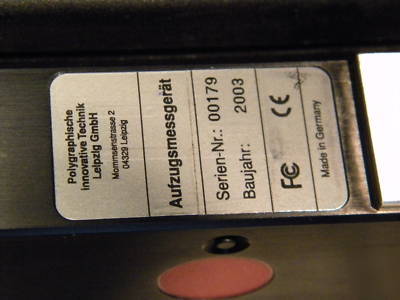

* PITSID Packing Gauge 30 CM Long, W Case (mm or Inch)

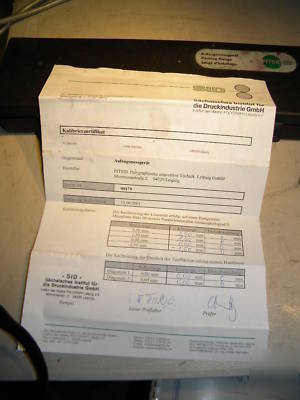

* In the case is the guage and a certificate of calibration.
* PITSID's web site is here and this link is the PDF of the sell sheet for this item.
* Other information is on the web site here.
* Measuring Range: -1.5mm - 3.5mm
* Range of Application: Cylinders of any diameter
* Measuring Uncertainty: +/- 0.01mm
* Dimensions: 307mm x 55mm x 30mm
* Operating Temperature: 15 C to 30 C
* Storage Temperature: 5 C to 40 C
* Voltage Supply: 1.5 Volt AA Battery

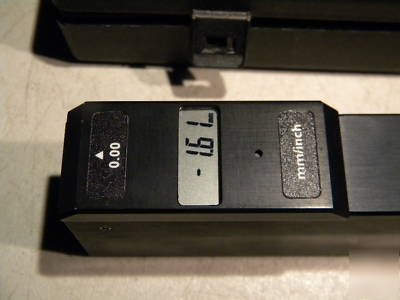

* Battery Control: Change the battery if "B" appears on the display
* Hold Function: With the stop/go buttons ("H" appears on the display)
* Selection of Unit of Measurement (IN / CM): with the mm/inch button below the display
* Zero Position: With the 0.00 Button (Prss for at least one sec.)
* Included: Packing Gauge, Case, Calibration Sheet, AA Battery.
For many years offset printers have already been using the Packing Gauge offered by Polygraphische innovative Technik Leipzig GmbH (PITSID). It can be used on plate and blanket cylinders of any diameter. The packing height over the bearer or measuring rings is electronically determined and digitally indicated. In addition to the standard, app. cm long version of the device now for the first time a cm version is available for measurement on offset varnishing forme cylinders and flexographic forme cylinders. An cm long gauge - also a new version - is intended for use on long grain presses with cylinders shorter than mm, on which labels or CD stickers are printed.
The device is held in one hand and set on the blanket or plate. The measuring value is fixed with the hold function and can be read outside the press. It is digitally indicated (in MM) with a accuracy of 1/100 mm.
Measuring can be made on cylinders of any diameter. Due to the measuring principle, only a good eye is necessary to achieve parallelism when setting the device on the cylinder. Likewise individual pressure differences have no influence on the measuring result.
