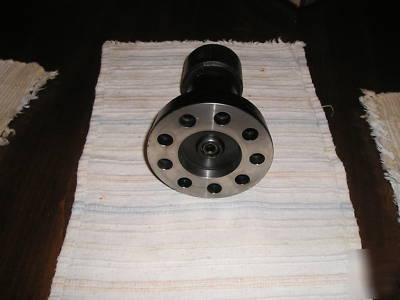

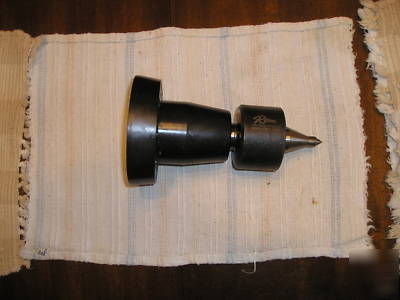

Nice, riten long point live center #48104 in mount,
OVER ALL LENGTH IS APPROXIMATELY 9 INCHES,, IT IS MADE OF HARDENED TOOL STEEL, TAPER 4, IT HAS A MORSE TAPER. THE POINT DIAMETER IS .5 INCH, THE HEAD DIAMETER IS 3 INCHES, THE POINT LENGTH IS 2.219 INCH, , THE V2 IS 34 DEGREE, MAX RPM 0 TO 4000, MAX WORK PIECE WEIGHT 0-1100, REGAL SERIES, LONG POINT, HEAVY DUTY BEARING DESIGN, POINTS ARE HARDENED TO 61-63 RC., FULL LENGTH SPINDLE FOR EXTRA RIGIDITY, DOUBLE ROW OF ANGULAR CONTACT BEARINGS , BODY HEAT TREATED,
CHECK OUT MY OTHER LISTINGS AS I WILL TRY TO LIST MORE OF THE MACHINE SHOP TOOLS AND EQUIPTMENT,
