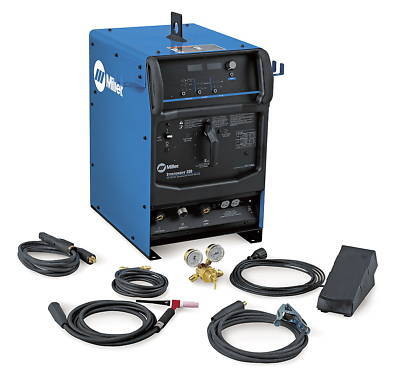

Miller syncrowave 200 ac/dc 907308
Best in class - the Syncrowave 200 is a Squarewave welding package that provides you with professional performance at an economical price.
A complete industrial grade single-phase, squarewave output, AC/DC TIG/Stick machine, and now with adjustable AC Balance Control and other new features. All you need is filler material, a bottle of shielding gas and some stick electrodes and you're ready to start welding. With over 20 years of Squarewave technology, the Syncrowave 200 is a full-featured machine that brings you capabilities which were previously available only with heavy-duty industrial TIG equipment.
* Squarewave output with AC balance features adjustable penetration and cleaning action while increasing arc stability on various aluminum alloys, and helps eliminate tungsten spitting and arc rectification.
* Dual digital meters allow for quick and easy viewing of actual and preset values of amperage and voltage. Allows for greater accuracy and repeatability in the welding procedure.
* NEW Built-in Pulse Control enhances weld bead and puddle control for improved appearance and quality.
* NEW Cable management system uses dual cable hangers and foot control storage conveniently attached to the power source side panels.
* NEW Auto Postflow protects the weld end zone and electrode by optimizing postflow time base on welding amperage.
* NEW 115 Volt Auxiliary Power with convenient receptacle on front panel for cooling system or small tools.
* NEW Syncro Start allows the operator to select Soft, Standard or Hot TIG HF starts to optimize the application according to tungsten diameter and material thickness.
Squarewave - The AC output of a power source that has the ability to rapidly switch between the positive and negative half cycles of alternating current.
LVC Line Voltage Compensation - Keeps output of the power source constant regardless of fluctuation in input power 10%.
Adaptive Hot Start for Stick - Automatically increases output amerage at the start of a weld should the start require it and prevents the electrode from sticking and creating an inclusion.
* Light Industrial Applications
* Power source with primary cord
* 150 amp TIG Torch with 12 1/2 ft (3.8 m) cord
* 12 ft (3.7 m) work cable and clamp
* Electrode holder and quick-connect
* RFCS-14 Foot Control with 20 ft (6 m) cord
* Gas regulator and gas hose
Quick Specs: Syncrowave 200
Rated Output 150 A at 26.0 Volts, at 40% Duty Cycle
Output Power Range AC or DC: 5 - 200 Amps
