Mdc-type gv-5000M-p 5 inch id vacuum gate valve

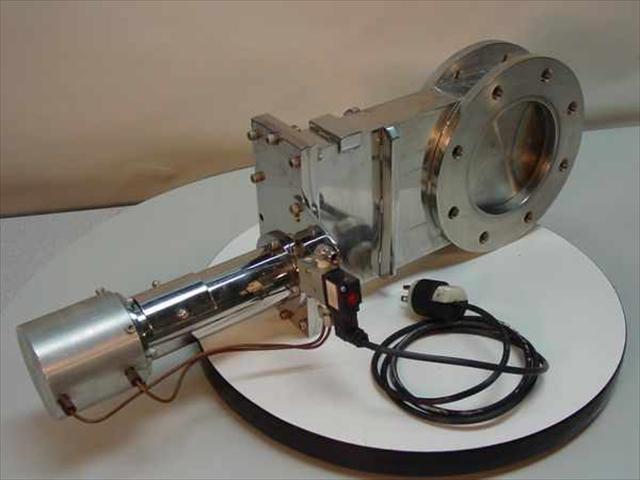

MDC-Type GV-5000M-P 5 Inch ID Vacuum Gate Valve
* Pneumatic Actuator on an Extended mount
* Flange: 5.25" ID- 9.0" OD x .500 thick
* Flange face to Flange face 2.750"
* Valve Main Body 1.750" x 6.8125" x 14.125"
* Length over all from cylinder top to flange bottom. 25.750".
