Datacom textron lancat vx 100 mhz CAT5 certifier tester
* Datacom LANcat Vx Two Way Tester
* Datacom Performance Module Cat5 Link Adapters
* LANcat V Performance Calibration Module

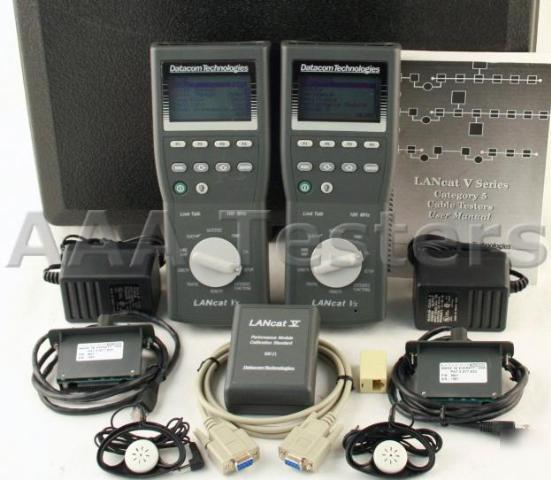

Datacom Textron LANCAT Vx Cat5 Cable Certifier Set
Test & Certify Cat5 Cabling Installations
The Lancat Series are precision instruments for the certification and troubleshooting of LAN cable installations. With plug-in Performance Modules, the LANcat Series are capable of testing a wide variety of cable types including Category 5/Class D twisted pair, coaxial cable, and fiber optic cable.
* One Way or TwoWay system testing
* Test UTP, ScTP, coaxial, STP, and fiber optic cable.
* Certifies twisted pair cable up to EIA/TIA 568A Category 5 and ISO/IEC 11801 Class D (100MHz).
* Performs NEXT, Length, Wire Map, Attenuation, Noise, Traffic, Inpedance, and Resistance Tests.
* Performs a preprogrammed suite of certification tests when set to Autotest.
* Performs enhanced cable tests including Power Sum NEXT, Delay/Delay Skew, and Cable Grading to test emerging new enhanced data cables.
* Cable Toner enables indentification of cable at far end.
* Stores up to 500 Autotest results on a OneWay System, or 1000 for a TwoWay System.
* Graphical user interface on the main and remote units allowing test results to be viewed at both ends.
* Easy field updates of hardware and software using plug-in Performance Modules and flash memory.
* Operates using either replaceable AA batteries, AC/Mains power, or a rechargeable NiMH battery pack.
* Voice communication between main unit and the remote (LANcat TwoWay).
