Central 140 psi twin cylinder air compressor pump 93786

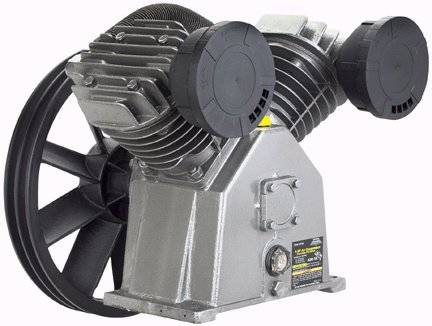

Central 140 PSI Twin Cylinder Air Compressor Pump 93786
Single stage twin cylinder pump for a 5 HP motor.
* Air delivery: 18 SCFM @ 40 PSI, 13.4 SCFM @ 90 PSI
* Proven belt driven design for excellent compression and smooth running
* Two mufflers and two high efficiency intake filters
* Oil viewing window and drain plug
* Ball bearing check valve release
* Effective splash lubrication system keeps pump running cool
* Aluminum construction with cast-iron cylinder sleeve
Max. pressure: 140 PSI; Max. speed: 1200 RPM; Flywheel: 14-1/2'' with dual V-groove; Four 7/16" mounting holes (1/2" x 14 TPI)
