6' stainless backshelf concession exhaust hood system
6' Stainless Backshelf Concession Exhaust Hood System
ETL & NSF listed. Stainless Hood with Exhaust Fan
The Low Proximity Backshelf Hood is designed for commerical cooking applications with low ceilings and small confined spaces.
6' long 24" deep x 12" high rear with 3.5" front face-Sturdy stainless steel construction-Space saving, compact design uses limited kitchen space-Hood may underhang equipment by maximum 4.5". Side Clearance is 2"- 430 SS Where Exposed- Stainless Steel Baffle Filters Included- Grease Cup

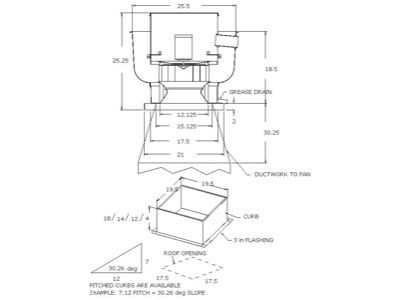

VXD30H High Speed Direct Drive Centrifugal Upblast Exhaust Fan with speed control, dsconnect switch and 11-3/4" WheelExhaust Fan handles 660 CFM @ 0.500" wc. Fan runs at 1461 RPM.MOUNT BRACKET
