3326 cincinnati milacron de 18 x 36 universal grinder

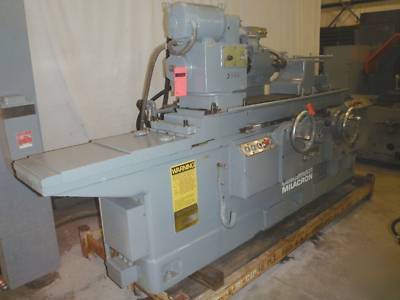

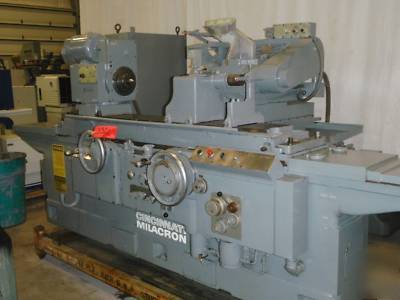

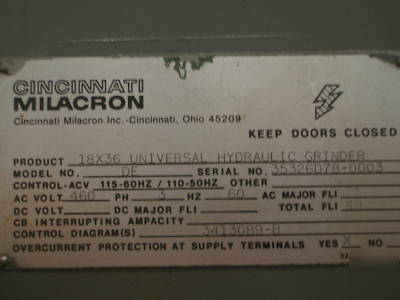

CINCINNATI MILACRON MODEL DE 18 x 36 UNIVERSAL GRINDER
Maximum swing over table 18-15/16
Maximum diameter machine will grind with full size wheel 18-15/16
Normal distance between centers 36
Grinding wheelhead: Lower swivel right and left 90 degrees
Upper swivel right and left 30 degrees
Standard grinding wheel 14 x 1 x 5
Automatic infeed at table reversal (dia. reduction) .0002 to .005
Pickfeed selections: Right end only, left end only Yes

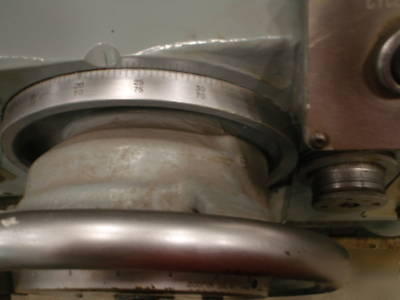

Wheelhead movement per turn of crossfeed handwheel,
Internal grinding attachment motor 2 hp
Distance from floor to centers 45
Swivel table graduated to an angle:
Swivel table graduated to taper per ft:
Approximate floor space required 72 x 154
