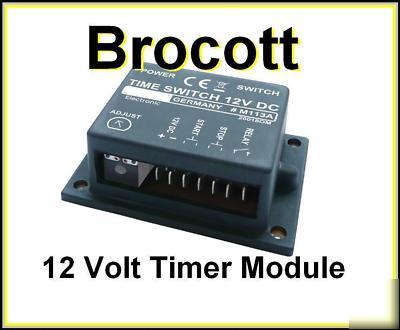

12 vdc electronic timer module-adjustable up to 23 mins
12vdc Electronic Automatic Timer Module
Used for switching other devices for predetermined periods of time. After activating the 'Start' button the timer switches on and remains on until the preset time has lapsed. It then switches of automatically. The timer can be adjusted from 2 seconds up to 23 minutes. External appliances can be switched via the installed relay point 1 x ON (max. 3A). The lapse of time may be interrupted any time by pressing the second button. Use: exposure devices, charging sets, toys, machines, illumination, etc. 2 push-buttons, (not included), are required in addition for operation. For timing greater than 10 minutes, a potentiometer 500 k lin. for periods must be used.
* Operating voltage: 12...15VDC
* Current consumption: approx. 20mA/80mA (relay off/on)
* Adjustable time: approx. 2 sec. to 10 min., with an external potentiometer 500 k lin. up to ~30 minutes ( 30%)
* Connection: via cable outlets at the module
* Displays: 2 (1 x LED operating voltage, 1 x LED relay "ON")
* Relay point: 1 x ON, max. 3A max 25V (The installed relay point may also switch up to 230V~, but in this case the safety regulations of VDE like protection against accidental contact, etc. have to be observed)
* Dimensions: approx. 60 x 45 x 20 mm
