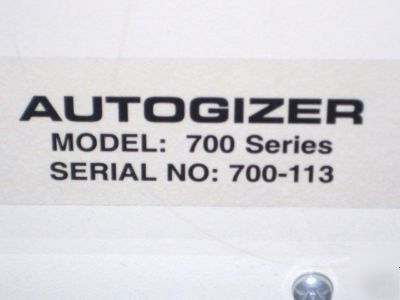

Tomtec 700-113 autogezer automated homoginizer mixer

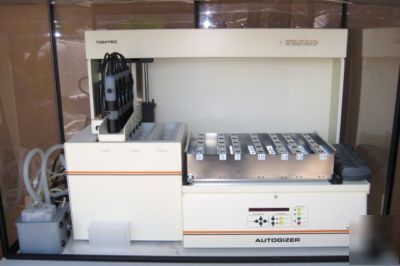

This listing is for an automated multi-sample homoginizer system.

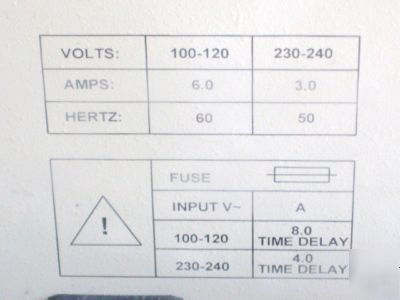

* 100-120V / 6A / 60Hz
* 230-240V / 3A / 50Hz

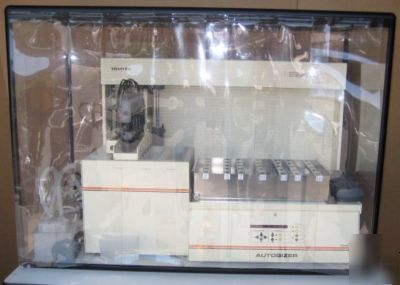

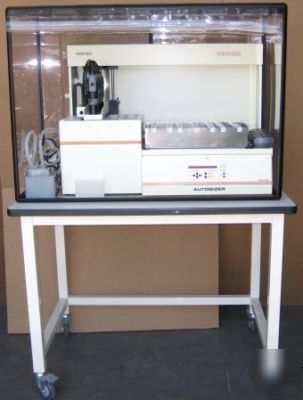

* Includes the pictured enclosure an work table.
The Autogizer is designed to fully automate a variety of homogenizing tasks. Model 700 is equipped with five Model 200 1/5 hp units. A wide range of cutter sizes are available for each model. A standard tube rack is included. Custom racks with or without ice baths are readily available.
The racks may be partially filled (1 or more) or fully filled for automated processing. The programming is by individual rows. The cutters may be oscillated up and down with the program setting speed of oscillation, upper and lower heights, time, and number of cycles in each row. The high cutter speed and versatile programming makes for quick and very efficient homogenizing.

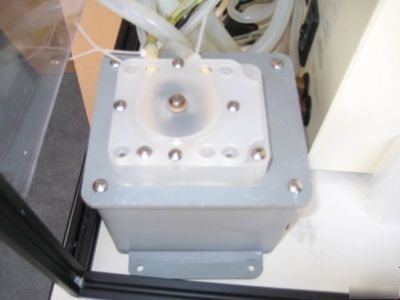

The cutters are cleaned automatically with three programmable wash stations. The first is a aqueous bulk wash station designed to be used with tap water. It provides quick, abundant washing, to effectively clean residual material from the cutters. It may not remove all fibrous material. Fibrous material may require manual intervention. The aqueous bulk wash station may also be fed from a reservoir and peristaltic pump. The wash time may have to be increased accordingly. The second wash station is for organic solvents, such as alcohol, to remove non-aqueous residuals. The third is an ultrasonic aqueous bath to serve as the final rinse. A peristaltic pump is provided to circulate the organic and ultrasonic baths. The wash waste is separated to organic or aqueous collection. The programming controls the cutters" motion and time in each wash station. Each wash station is independently programmable.

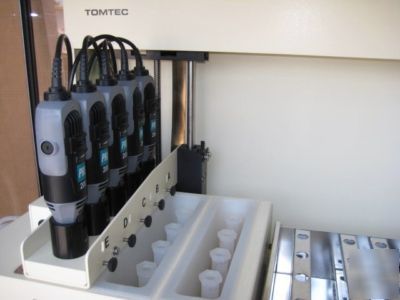

Model 700 includes five Model 200 homogenizers (1/5 hp 5,000 to 30,000 rpm)
Flexibility - Can run individual tubes or full racks

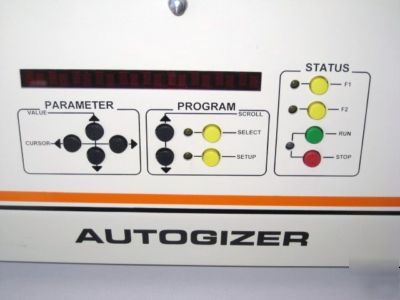

Fully Programmable Row by Row with multiple operator set programs
* Up and Down Cycling with height settings
Advanced Cutter Washing Station 3 Programmable Circulated Wash Stations

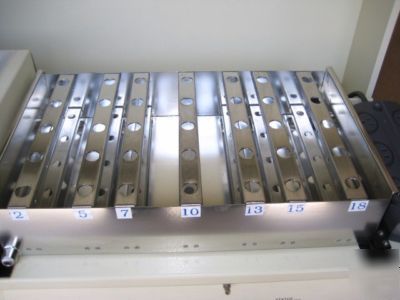

* Standard or Special racks for your tubes
* Available with or without ice baths
For further specifications, please visit Tomtec's product page at http:// /pages/products/Autogizer.html
