Tektronix GB1400 gigabert analyzer w/ opt's 08 & 09

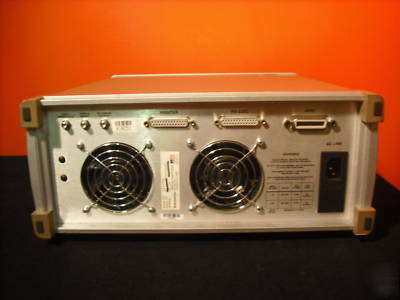

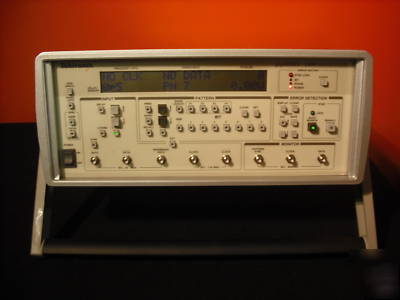

Tektronix GB1400 GigaBert Analyzer
The GB1400 Generates Low-Jitter, Symmetrical Waveforms Over Its Entire Operating Frequency Range. The Clock and Data Ports Provide Both True and Inverted Output Signals. The Instrument can Drive Single-Ended or Differential ECL Inputs. The GB700 also Drives PECL Inputs and Also Provides Levels Suitable for TTL Inputs
* Operating Frequency Range 1400 Mb/s
* Internal PLL Synthesized Clock Source
* Programmable Pattern Memory: 1 Mbit
* Clock/Data Delay 4 ns, 5 ps (GB1400) Resolution
* Automatic Eye-width Measurements (GB1400)
* Reference Data Input for Proprietary Framed Data
* Phase Synchronous Clock and Data Edge Tracking
* TTL, ECL and PECL I/O Compatible
