Handheld IT4710LR-121BLK image capture lift ocr RS232

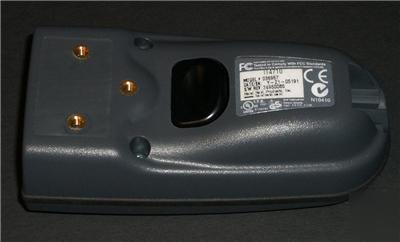

HANDHELD / HONEYWELL IT 4710 IMAGE READER BARCODE SCANNER CAPTURE LIFT OCR RS232
Handheld IT 4710 Image Reader, Capture, Lift, OCR RS232 Barcode ScannerNew Open Box Part Number: IT4710LRList Retail Price: $539.00(accessories sold separately)
The HandHeld IT-4710 Image Reader can be configured as either a hand held or fixed mount device for reading and decoding two dimensional (2D) symbologies and OCR text, as well as capturing images for signature capture and related applications.
Offering integrated support for all popular matrix, stacked linear (PDF417) and conventional linear bar codes, the IT4710 can be configured for keyboard wedge, non-decoded laser, TTL, or True RS232 output. The IT4710 has the power to capture and download images to a PC for applications that include signature capture PC-based decoding and image lift requirements as well.
The IT4710 Reader is ideally suited to packaging printed circuit board manufacturing electronic component manufacturing and clinical-diagnostic applications. The IT4710 connects to all popular PCs and portable data terminals.
Hand Held Products IMAGETEAM 4710LR/LX
Hand Held Products IMAGETEAM 4710LR/LXThe Hand Held Products IMAGETEAM (IT) 4710 Image Reader can be configured as either a hand held or fixed mount device that reads matrix, stacked linear, and conventional linear bar codes, as well as a single line of OCR-A and OCR-B fonts. Multi-line OCR applications can also be read. The Hand Held Products IT4710 has the power to capture and download images to a PC for applications, such as signature capture, PC-based decoding, and image lift requirements.
The Hand Held Products IT4710 Reader can be used in retail, packaging, transportation, printed circuit board manufacturing, electronic component manufacturing, and clinical/diagnostic applications that include test tube and reagent package labels.
The Hand Held Products IT4710 can be configured for keyboard wedge, Non Decoded Output (Code 128 emulation), TTL, or True RS232. The Hand Held Products IT4710 connects to all popular PCs and portable data terminals. The Non Decoded Output mode can be used with external wedge decoders and portable terminals or other devices without 2D decoding capability.
The Hand Held Products IT4710 features integrated processing for a one-piece scanning solution - no additional boxes or electronics needed. The reader provides omni-directional and auto-discrimination decoding for symbologies, such as MaxiCode, PDF417, QR, Data Matrix, Aztec code, RSS code, composite codes, postal codes, Code 39, Code 93, Interleaved 2 of 5, Codabar, Code 128, UPC and EAN. Additional symbologies will be added based on market demand.
Because the Hand Held Products IT4710 is a fixed focus device, four product models with different focal points are available. The Hand Held Products IT4710LX, designed for reading wide codes at up to 15 inches on PDF, has a focal point of 7 inches from the nose. It is ideal for reading the 1D and 2D labels found in the transportation industry. The Hand Held Products IT4710LR, designed for low and medium density codes, has a focal point of 5 inches from the nose. It is ideal for general 2D applications (postal, retail, and asset tracking). The high density (HD) models of the Hand Held Products IT4710 are highlighted in a separate data sheet.
Hand held or fixed mount image reader for reading and decoding 2D symbologies, and capturing images
Supports all popular 2D symbologies
Fixed mount IT4710 supports all popular matrix and stacked linear symbologies: MaxiCode, Aztec, Aztec Mesa, Data Matrix, PDF417, QR, and MicroPDF417
Opens up new 2D bar code and image capture possibilities for fixed scanning applications
CMOS-based video technology and image processing gives the IT4710 full omni-directional scanning, even on linear codes, greatly simplifying operator training and increasing productivity
The Hand Held Products IT4710 has a bright, intuitive, aiming line
Autodiscriminates between supported symbologies and fonts
Reads all major linear, stacked linear, and matrix bar codes as well as machine readable fonts used in Optical Character Recognition (OCR)
Total darkness to 100,000 lux (full sunlight)
660nm LEDs provide bright aiming line
MaxiCode, PDF417, MicroPDF417, Aztec, Aztec Mesa, Data Matrix, QR Code, Code 49, UCC Composite, Snowflake*, Vericode*, Dataglyphs*
Code 39, Code 128, Codabar, UPC, EAN, I 2 of 5, RSS, BC 412*, Code 93, Codablock
* available to licensed users only
Postnet (US), BPO4 State, Canadian 4 State, Japanese Post, KIX (Dutch Post), Planet Code
RS232, Wedge, and HHLC (Code 128 Emulation)
Baud, Parity, Data Formatting, Code Options
Low Power Mode - average @ 5VDC-40mA
Medium Power Mode - average @ 5VDC-125mA
High Power Mode - average @ 5VDC-175mA
10 drops 5ft to concrete @ room temperature
Functional after 15KV discharge
Complies with EMC 89/336/EEC and LVD 73/23/EEC
