Digital ultrasonic flaw detector defectoscope portable

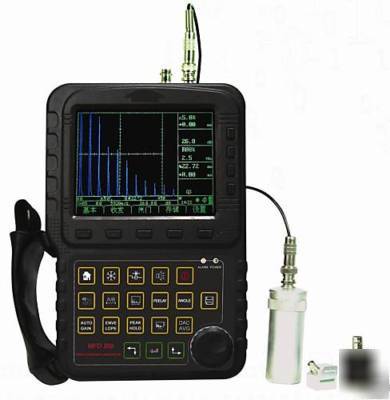

MFD350 ULTRASONIC FLAW DETECTOR
MFD350 Portable Digital Ultrasonic Flaw Detector is a economical and practical model improved on MFD500. Except for the differences of its measuring range, working frequency and transmitted pulse parameter, the other performances are the same as MFD500.
Based on ultrasonic pulse reflection testing principle, MFD350 controls all testing process by the mini-processor. And it has low power design and can do charge with two models such as online chargeing and offline charging. And it can work continuously about 8 hours.With large capacity, digital multi-color TFT LCD, original imported stable IC, small size, light weight, stable performance and favorable price, MFD350 is one of our company s high promoted super cost performance and economically ultrasonic flaw detector.
* With english display, master-slave menu, shortcut key and digital swiftly knob, it s designed with leading technology and can be used very conveniently.
* With digital color TFT LCD display, it can choose the background colour and wave color acoording to the environment. And the LCD brightness also can be set freely by yourself.
* Designed with high performance security-guarantee battery module, it s easy for disassembly and assembly. And it can charge independent with offline. And the large capacity and high performance Lithium-ion battery module make the instrument continously working time to above 8 hours,
* With small size and light weight, the instrument can be hold by one hand. It s durable in use and lead industry trend.
0~ 6000mm (at steel velocity); range selectable in fixed steps or continuously variable.
Spike excitation with low, middle and high choices of the pulse energy.
Pulse Repetition Rate: manually adjustable from 10 to 1000 Hz.
Pulse width: fixed,nonadjustable
Damping: 100 , 200 , 400 selectable to meet different resolution and sensitivity need.
Probe work mode: Single element, dual element and through transmission;
Real-time sampling at 160MHz high speed enough to record the defect information.
Rectification: Positive half wave, negative halfwave, full wave, and RF
:DB Step: 0dB, 0.1 dB, 2dB, 6dB step value as well as auto-gain mode
Total 100 configuration channels store all instrument operating parameters plus DAC/AVG curve; stored configuration data can be easily previewed and recalled for quick, repeatable instrument setup. Total 1000 datasets store all instrument operating parameters plus A-scan. All the configuration channels and datasets can be transferred to PC via USB port.
Automatically searching the peak wave inside the gate and hold it on the display.
Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter.
Continuous Record: Record the display continuously and save it to the memory inside the instrument.
Defect Localization: Localize the defect position, including the distance, the depth and its plane projection distance.
Defect Sizing: calculate the defect size
Defect Evaluation: Evaluate the defect by echo envelope.
DAC: Distance Amplitude Correction
AVG: Distance Gain Size curve function
Crack measure: Measure and calculate the crack depth
B-SCAN: Display the cross-section of the test block.
Real time clock for tracking the time.
USB2.0 high-speed communication port
Material Velocity: (1000 ~ 9999) m / s
Horizontal linear error: 0.2%
Sensitivity Leavings: 60dB (flat-bottomed deep hole 200mm 2)
Power supply: DC 9V; lithium batteries work for 4 to 8 hours or more
Ambient temperature: (-20 ~ 50)
Relative Humidity: (20 ~ 95)% RH
Overall dimensions: 263 170 61 (mm)
THIS IS THE NEWEST MODEL AVAILABLE WHY PAY HIGH RETAIL WHEN ONLY FOR A LIMITED TIME YOU CAN GET NON-REFURBISHED BRAND NEW FOR A FRACTION OF THE COST.
WE ARE SO CONFIDENT YOU WILL LIKE THIS UNIT THAT WE HAVE SET UP 100% MONEY BACK SATISFACTION GUARANTEE!
it for a refund of the full purchase price anytime within 15 days of receiving your item -
no questions asked - just let us know you are returning the item.
COMES WITH 1 YEAR MANUFACTURER'S GUARANTEE!
..................................................................................
* Absolutely NO REFUNDS after 15 days of receiving the item.
