New honeywell MP918A 1057 MP918A1057 pneumatic damper

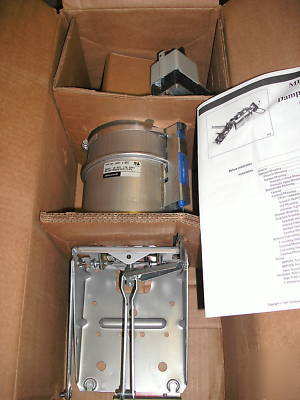

Honeywell MP918A 1057 2 MP918A1057 PNEUMATIC DAMPER ACTUATOR NEW
Description Damper Actuator, Actuator force: High ,Spring Range: Positive positioner 10 psi span (5 psi spring included)
Actuator Spring Range (psi) Positive positioner 10 psi span (5 psi spring included)
Actuator Spring Range (kPa) Positive positioner 69 kPa span (34 kPa spring included)
Diaphragm Effective Area (sq in.) 23.8 sq in.
Diaphragm Effective Area (sq cm) 154 sq cm
Maximum Safe Operating Pressure (psi) 25 psi
Maximum Safe Operating Pressure (kPa) 172 kPa
Temperature Range (F) -20 F to +158 F
Temperature Range (C) -29 C to +70 C
Fail Safe Mode Spring Return
Air connections 5/32 in. push-on barb (Pilot), 1/4 in. push-on barb (main.)
Operating Humidity Range (% RH) 5 to 95% RH
Dimensions (in.) 20 1/2 in. long x 8 in. high x 6 5/8 in. diameter
Dimensions (mm) 520 mm long x 205 mm high x 168 mm diameter
Includes 14004062-002 - Internal N.C. Trunnion Mounting Bracket with pushrod assembly. Positive Positioner
Approvals, Underwriters Laboratories Inc Components Recognized: Report R18118
