Leybold turbovac tmp 50 turbo vacuum pump/nt controller
Leybold TurboVac TMP 50 Turbo Vacuum Pump/NT Controller

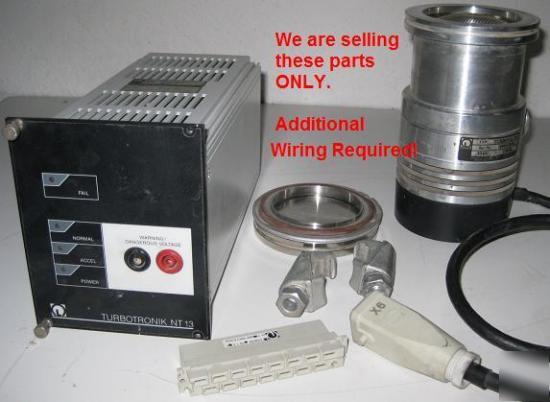

(1) Leybold/Oerlikon TMP 50 Turbo Pump LH-85401 ISO63-K Flange. ($3500 Retail)
(1) LEYBOLD TURBOTRONIK NT 13 SP OEM Style Turbo Pump Controller LH-85710 ($1500)
(1) Connector block for NT13, Terminal crimp to DIN Style
* The cable is OEM custom, it has correct connector to pump, but does not have functional connector to controller on other end. Connector you see is for OEM connection through external box.
* You will need to cut off this connector and terminate and connect wiring with standard crimps
* Cable is relatively short, you will probably want to splice in more length.Correct insulation and wire type is probably imporant for these high speed motors.
* The NT 13 SP Controller is similar to the standard NT10, but has NO Buttons or controls on front panel. It is designed to be controlled by relay inputs in an OEM system, including starting and stopping the pump. As currently configured the controller will immediately spin up pump as soon as it is powered on. Unit can be reconfigured for external relay control and other functionality.
* The plug on the back of the NT13 is DIN style that has pump connection, external relay inputs and power leads. The connector block included uses push-on crimp connections. It is relatively easy, as you can see from the photo, to rewire a proper connection to run the pump.
* You will need to determine pinouts from the manual or carefully duplicate the wiring positions, as pictured, by color.
* Controller runs on any voltage standard. It is currently configured for 110 Volts. To switch to 220 you need to open the case and flip a switch.
This system was removed from a decommissioned and working CRT Television assembly line. The blades are clean and free of any corrosion or debris. Some oil residue may be visble on exhaust port.
