High current 2 channel relay module - 15A each - fused
High Current 2 Channel Relay Module
Up to 15A per channel - Each channel is idependently fused.

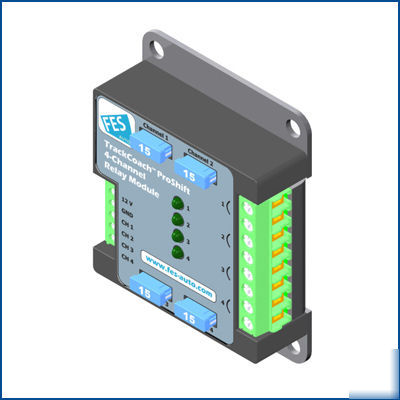

The TrackCoach ProShift High Current Relay Module contains two separately fused channels that can each switch up to 15 Amps of current. While this relay module was specifically designed as a companion to our shift lights, it can be used independently in your own setup. It s rugged enclosure and high quality automotive relays make it the perfect choice for your high current switching needs.
2 High Current (up to 15A) Automotive Relays
We use Panasonics high capacity CP Relays (CP1A-12V), designed for automotive applications where reliability and robustness are key.
Every Relays is fused separately
Safety is important. Because of this, we integrated a fuse with each control channel. The unit comes standard with 15 amp fuses. We used industry standard Littlefuse Series 297 automotive Mini Fuses, available from pretty much any auto parts store.
Rugged enclosure with metal base plate
LEDs to indicate state information for each relay
The on/off state off each relays is indicate by a LED.
* Height (with fuses): 22.68 mm (0.89")
* Mounting Holes: 5 mm (0.2")
* Control Current: 70 milliamps per Channel
8 amps or less @ 100% duty cycle
* 1 TrackCoach ProShift 2-Channel Relay Module
* 2 Spare 15 Amp Fuses (Littlefuse 297 Series )
Upper numbers are in mm - Lower numbers are in inch :
