Coherent innova i-100 argon ion laser w/power supply

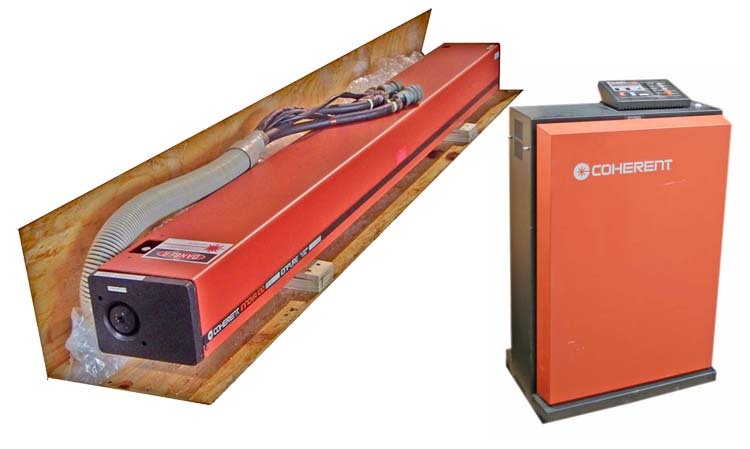

Coherent Innova I-100 Argon Ion Laser w/Power Supply
Coherent Innova 100 IonPure Plasma Tube w/ Power Supply
Dimensions(L*W*H): 82 x 8 x 7
Coherent Innova 100 Power Supply
Serial: 0458 / PS# 458 HD# 668
Dimensions(L*W*H): 15 x 24 x 27
Bore configuration: Copper-tungsten disks w/ one piece ceramic envelope
Plasma Tube Cooling: Conductively water cooled
Resonator: Construction Super Invar
Cavity specification: Flat high reflector, long radius output coupler
Output Polarization: 100:1 Electric Vector Vertical
Cavity length: 1923 mm (75.7 in) All-lines / 1953 mm (76.9 in) with Mdl 434 prism
Excitation: Current regulated DC
Input voltage: 480 +/- 10% VAC 50 or 60 Hz, 3 phase with ground, Wye or Delta configuration
Argon: 60 Amps per phase at 480 VAC
Krypton: 70 Amps per phase at 480 VAC
Maximum tube discharge current:
Water flow rate: 22.7 liters/minute (6 gallon/minute)
Water incoming temperature: min./ max.: 10oC (50oF) / 35oC (95oF)
Water pressure: min. / max.: 2.47 kg/cm2 (35 psi) / 4.23 kg/cm2 (60 psi)
*Both units are in excellent physical condition. Not tested.
