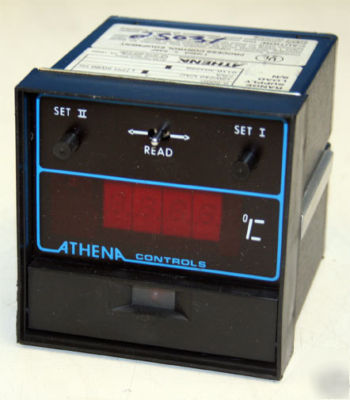

Athena 4000 digital temperature controller 4000-b-e
Athena 4000 Series Digital Temperature Controller 4000-B-E
120/240 Volts AC, 1 Phase, 50/60 Hz, 7/5 Amps
* 4000- Thermocouple Sensor Input
* B- Set-point 1 Output SPDT Relay 7/5 Amps
* E- Set-point 2 Full Scale Process Alarm
The Athena 4000 is a 1/4 DIN panel mounted, short metal case enclosed controller that can be used for accurate proportional temperature control of most processes. The controller accepts thermocouple or RTD input, and offers a choice of standard single outputs for energizing most common output devices. A single, digital filtered LED display provides visual indication of various controller functions.
* Noise-Immune Analog Circuitry
* 25-turn Setpoint Pots-Optional Second (Alarm) Setpoint
* Adjustable Bandwidth and Manual Reset to Eliminate Offset Error
* Available as FM-Approved Limit Controller
