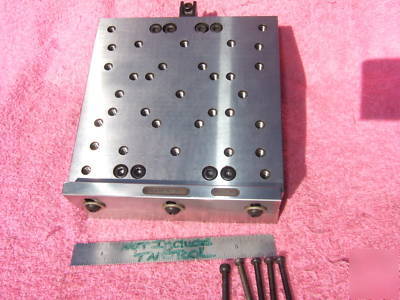

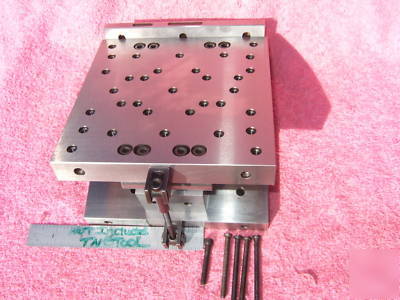

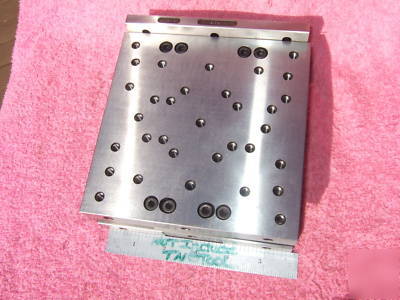

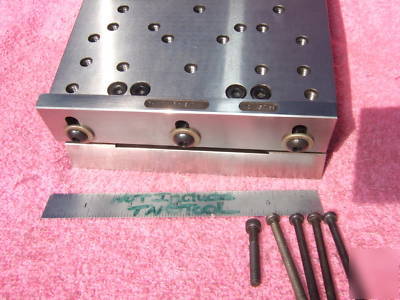

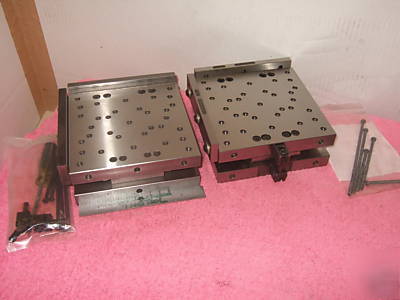

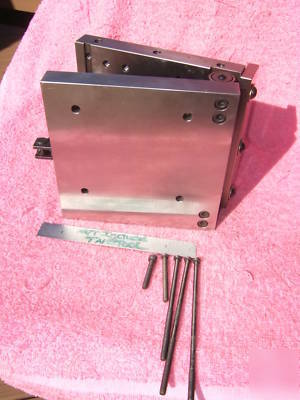

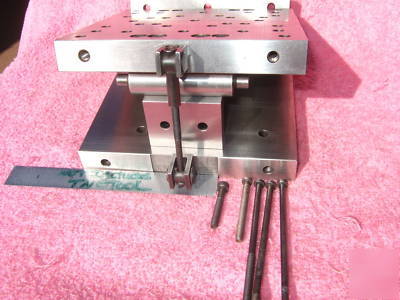

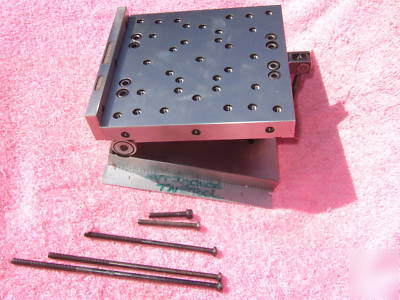

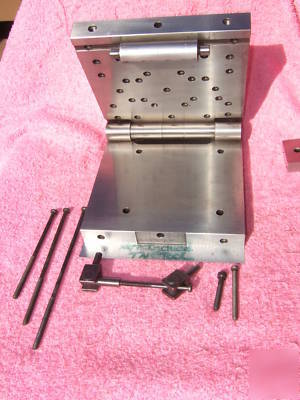

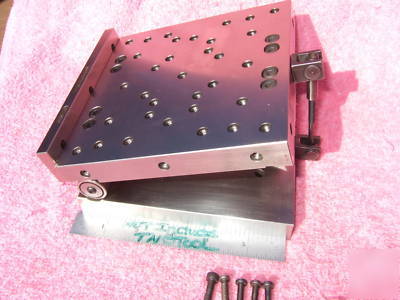

Sine plate 6X6 w/ hermann schmidt tensioner machinist
TOOLMAKER ALSO APPEARS TO HAVE ADDED 4 HOLES IN BASE PLATE. THEY ARE .28" ON A 3-1/2" SQUARE PATTERN LOCATED .9" FROM SIDE EDGE WITHOUT THE RAIL. NEED MORE PICS JUST ASK THERE IS A BLUE EMAIL LINK BELOW TO DIRECTLY ASK ME FOR PICTURES OR MORE DIMENSIONS OR USE " ASK SELLER A QUESTION" ABOVE. THANKS FOR LOOKING. SEE PICS.

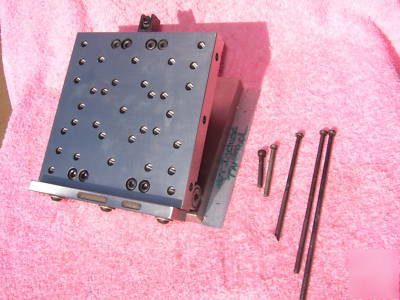

(33) TAPPED 1/4"X20 HOLES AND (12) TAPPED 1/4" X 20 ON SIDES AND ENDS OF TOP PLATE FOR RAIL ( 1 IS INCLUDED). BOTTOM PLATE MEASURES 6" WIDE X 6" LONG WITH THE SCHMIDT LOCKING STYLE HINGE ALSO! SAVE SOME $$$$ HERE!
Made of quality steel, hardened to 58-62 Rc.
Minute angle step .200" built into the gage block roll. Eliminates steps in base plate.

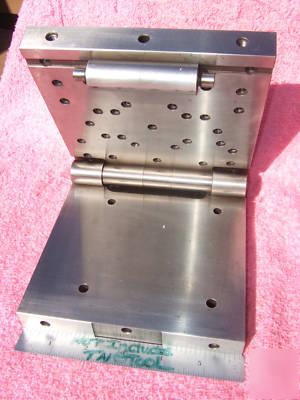

Large hinge pins for extra strength.
Tapped holes in top plate 6' x 6" ARE 1/4-20.
