New amc brushless servo amplifier B30A40AC advanced

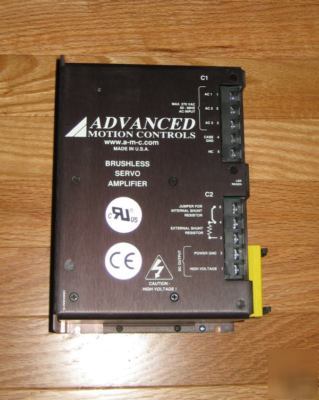

For sale is a new Advanced Motion Controls (AMC) brushless type servo amplifier. It comes with the original box.
This model also comes with a built in power supply and shunt regulator
Shunt Regulator turn on 390 VDC
http:// /download/datasheet/b30a40ac.pdf
The B30A40AC PWM servo drive is designed to drive brushless DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, under voltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone and requires only a single unregulated AC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
