#sabre 1250 cin-mila 3-axis cnc vert machining center

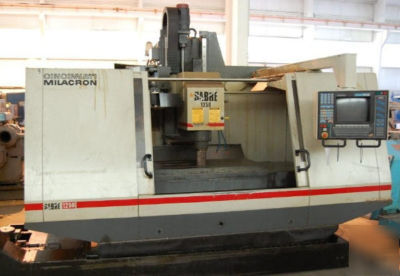

#SABRE 1250 CINCINNATI-MILACRON 3-AXIS
New 1993, Serial No 7037-A00-92-0180, Model ERT,
Table Working Surface, W X L........... 26" X 53.9"
Table Load Capacity.................... 2000 LBS
X-Axis Table Longitudinal Travel....... 49.2"
Y-Axis Saddle In/Out Cross Travel...... 25.6"
Z-Axis Spindle-Head Vertical Travel.... 25.6"
Spindle Taper, V-Flange................ #40 ANSI
Spindle Speeds, Infinite Range......... 60 TO 8000 RPM
X & Y-Axis Feeds, Infinite Range....... .100 TO 590 IPM
Z-Axis Feeds, Infinite Range........... .100 TO 590 IPM
Power Rapid Traverse, All Axis'........ 590 IPM
Spindle Motor, Horsepower Cont......... 12 HP
Spindle Motor, Horsepower MTDR......... 15 HP
Floor Space Required, W X D............ 11'8" X 9'5"
Weight, Approximately.................. 17500 LBS
