Microwave survey meter holaday industries model 1501

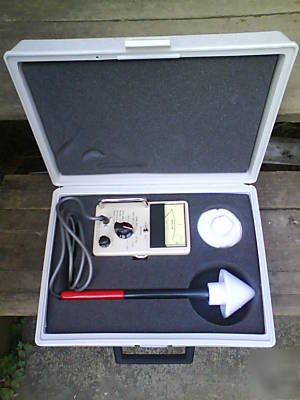

Microwave Survey Meter Model 1501
In used but good condition-sold as full working order-tested it round my microwave it picked up some small leaks but all well within safety levels
returns accepted if found faulty within 7 days of receipt
Our most popular and versatile model. Accuracy, portability, and a modest price all account for its widespread use by oven manufacturers and service technicians, regulatory agencies and public health officials.

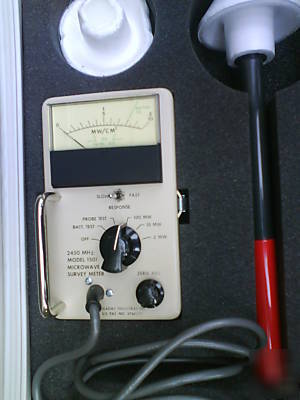

Rugged and compact, the HI - 1501 consists of a lightweight instrument package connected to the unique detection probe by means of a shielded cable. It is virtually immune to failure caused by excessive fields or physical abuse. Three survey ranges are incorporated into a switching sequence which includes a battery check and probe check position. The switching sequence provides automatic checking of both batteries and probe before each use. Special Electronic circuitry eliminates errors caused by long and short term drift.
* New meter face with added lines for easier reading.
* Flip-open latches for quick, easy replacement of batteries.
* Measurement independent of field polarization.
* Two 9 volt alkaline batteries.
* Rugged, attractive carrying case.
* Calibrated at 2450 MHz for use in the I.S.M. band
* Three ranges: 0-2, 0-10, and 0-100 mw/cm
* Accuracy: 1dB (0-2 and 0 -10 scales only)
* Time responses (0 to 90% of final value for a step input):
Fast - 1 second. Slow - 2.5 seconds
* Maximum power density: 2.0 W/cm .
* Instrumnet package dimensions: 2.5" x 3.5" x 6"
* Probe length: 12" Cable length: 4"
